Filter series FSRD

Walcom® series filter groups represent the maximum expression of quality in terms of compressed air treatment in bodyworks. Line, drop line, paint booth: perfectly clean and filtered air is a must, and for this reason Walcom® has created a complete range of single and combined filter groups, able to fully eliminate all water, oil, dust and humidity residue from mains air, generating breathable air thanks to the active carbon filter. The new /11 series combines a restyled look with higher efficiency which, thanks to the new air passage designs, guarantees 1200 l/min air flow, allowing for efficient bodyworks with even 2 spray guns.

PDF Catalogue

discover all the Filter series FSRD serie

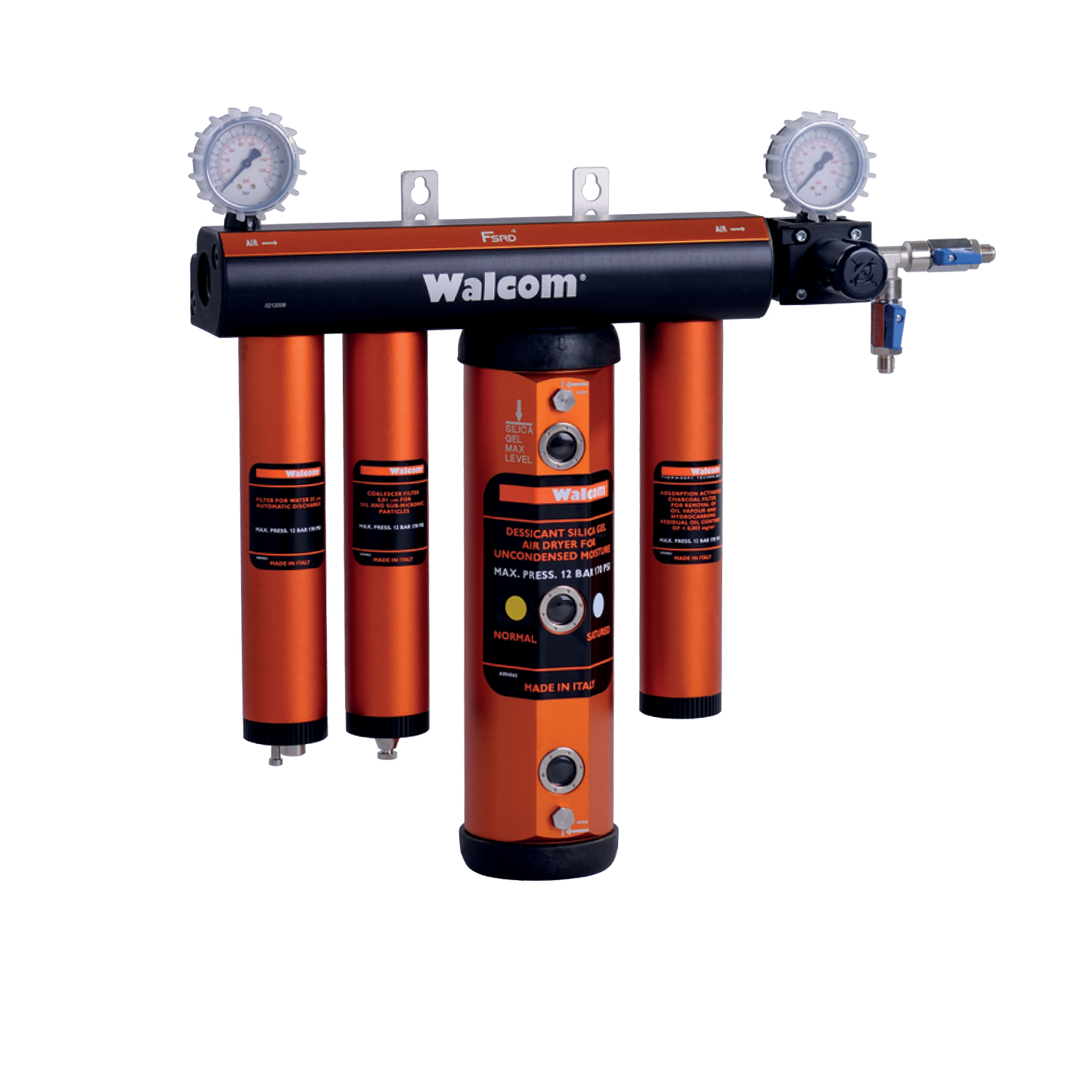

FSRD 4

Ref.: 60138/11
: A modular filter system ideal for use in the painting booth
Central body: Anodized aluminium
Composition: 1) Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.
: 2) Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
: 3) Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights.
: 4) Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m3
Pressure adjuster: Membrane system and automatic decompression
Air inlet: F 3/4"
Air outlet: Nr. 2 from M 1/4"
Filtering power: Air 5µ - oil 0.01µ
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 11 Kg

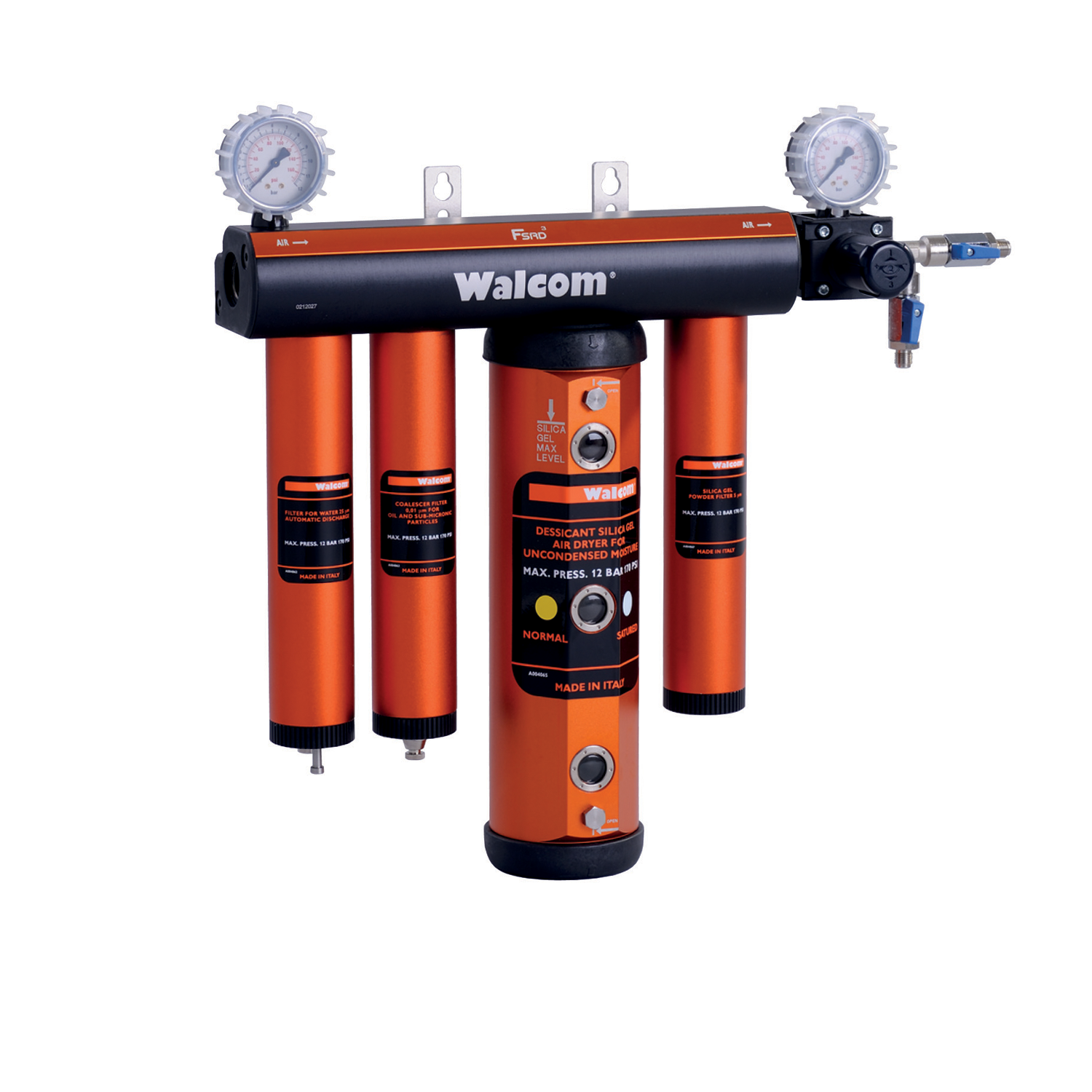

FSRD 3

Ref.: 60123/11
: A modular filter system ideal for use in the painting booth
Central body: Anodized aluminium
Composition: 1) Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.
: 2) Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
: 3) Silica dryer group to reduce residual humidity in the compressed air. Nr. 3 saturation indicator lights.
: 4) Filter to eliminate dust generated by silica, 5µ filtering capacity.
Pressure adjuster: Membrane system and automatic decompression
Air inlet: F 3/4"
Air outlet: Nr. 2 from M 1/4"
Filtering power: Air 5µ - oil 0.01µ
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 11 Kg

FSRD 2

Ref.: 60145/11
: A modular filter system ideal for use in the painting booth
Central body: Anodized aluminium
Composition: 1) Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.
: 2) Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
: 3) Active carbon filter to eliminate all impurities and obtain breathable air. Max oil residue < 0.0003 mg/m3
Pressure adjuster: Membrane system and automatic decompression
Air inlet: F 3/4"
Air outlet: Nr. 2 from M 1/4"
Filtering power: Air 5µ - oil 0.01µ
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 7 Kg

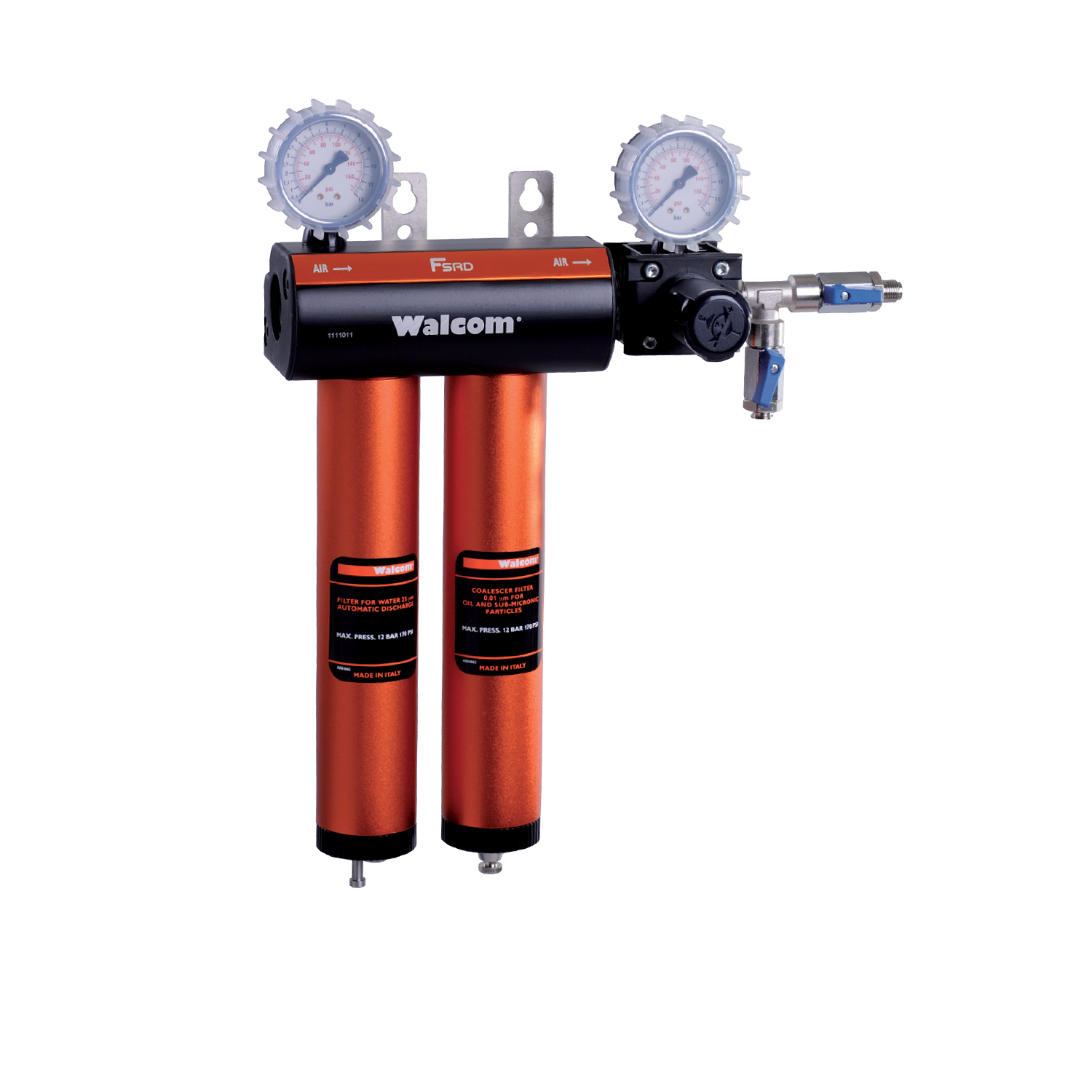

FSRD

Ref.: 60121/11
: Air treatment system excellent for use in car-body workshops and industry.
Central body: Anodized aluminium
Composition: 1) Pre-filtering element in sythentic fibre for the elimination of condensation. Automatic discharge.
: 2) Oil-separating filter for the elimination of residual pollutants. Manual drainage tap.
Pressure adjuster: Membrane system and automatic decompression
Air inlet: F 3/4"
Air outlet: Nr. 2 from M 1/4"
Filtering power: Air 5µ - oil 0.01µ
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 4.7 Kg

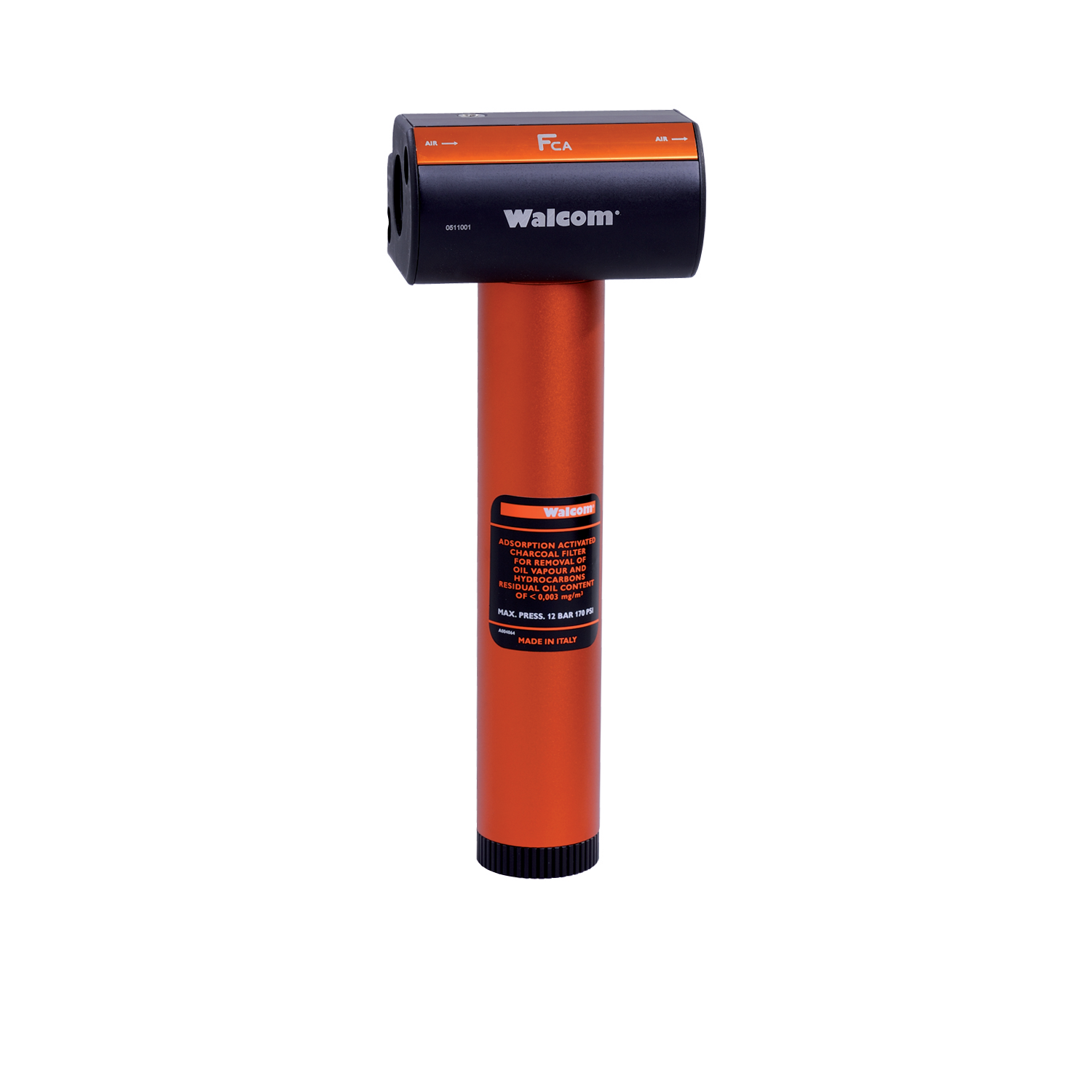

FCA

Ref.: 60139/11
: Active carbon filter to eliminate all impurities and obtain breathable air.
Central body: Anodized aluminium
Air inlet: F 3/4"
Air outlet: F 1/2"
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 2 Kg

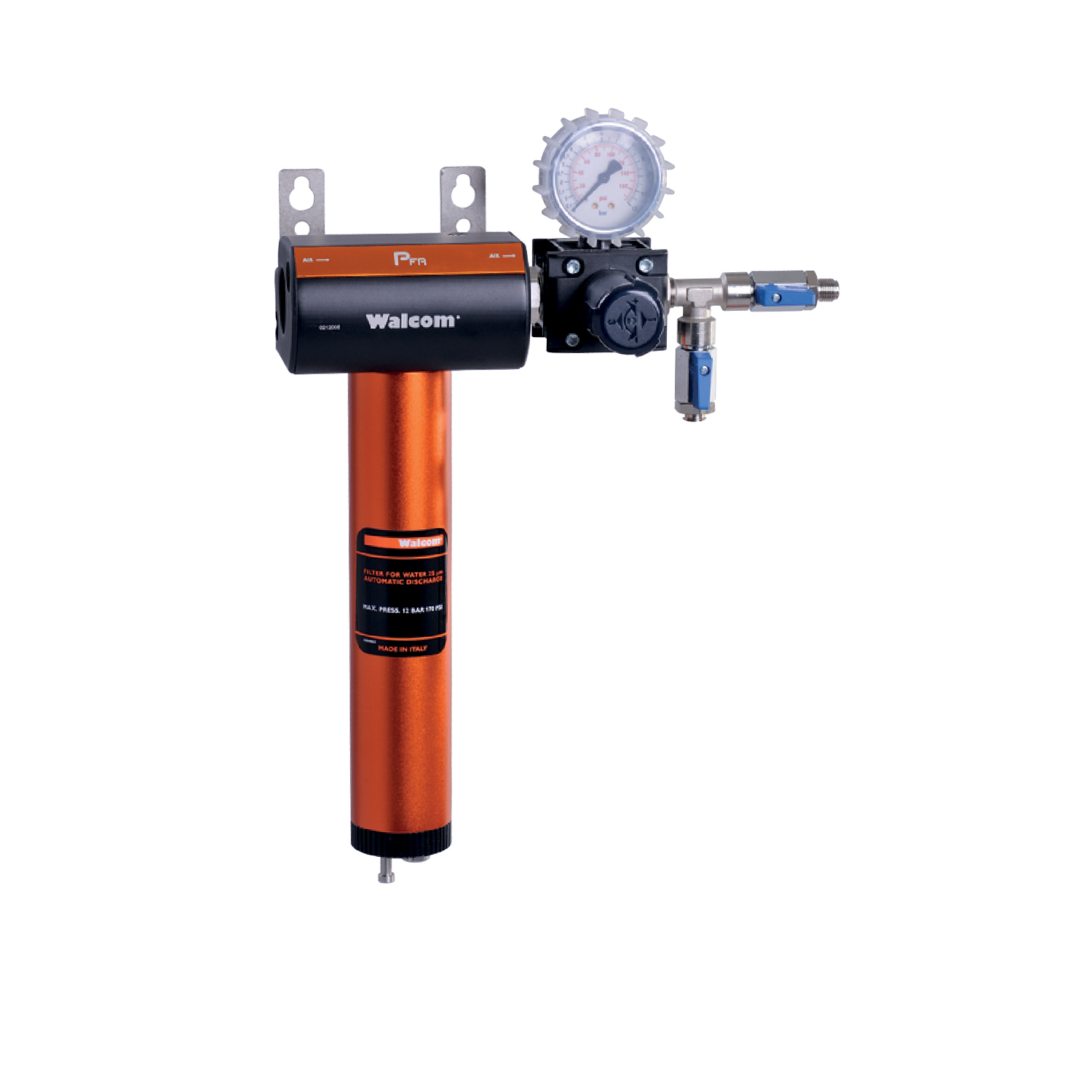

PFR

Ref.: 60127/11
: Filter unit for the elimination of condensing.
Composition: Sythentic fibre pre-filtering element to eliminate condensation. Automatic drain.
Central body: Anodized aluminium
Pressure adjuster: Membrane system and automatic decompression
Air inlet: F 3/4"
Air outlet: Nr. 2 from M 1/4"
Filtering power: Air 5µ
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 3.45 Kg

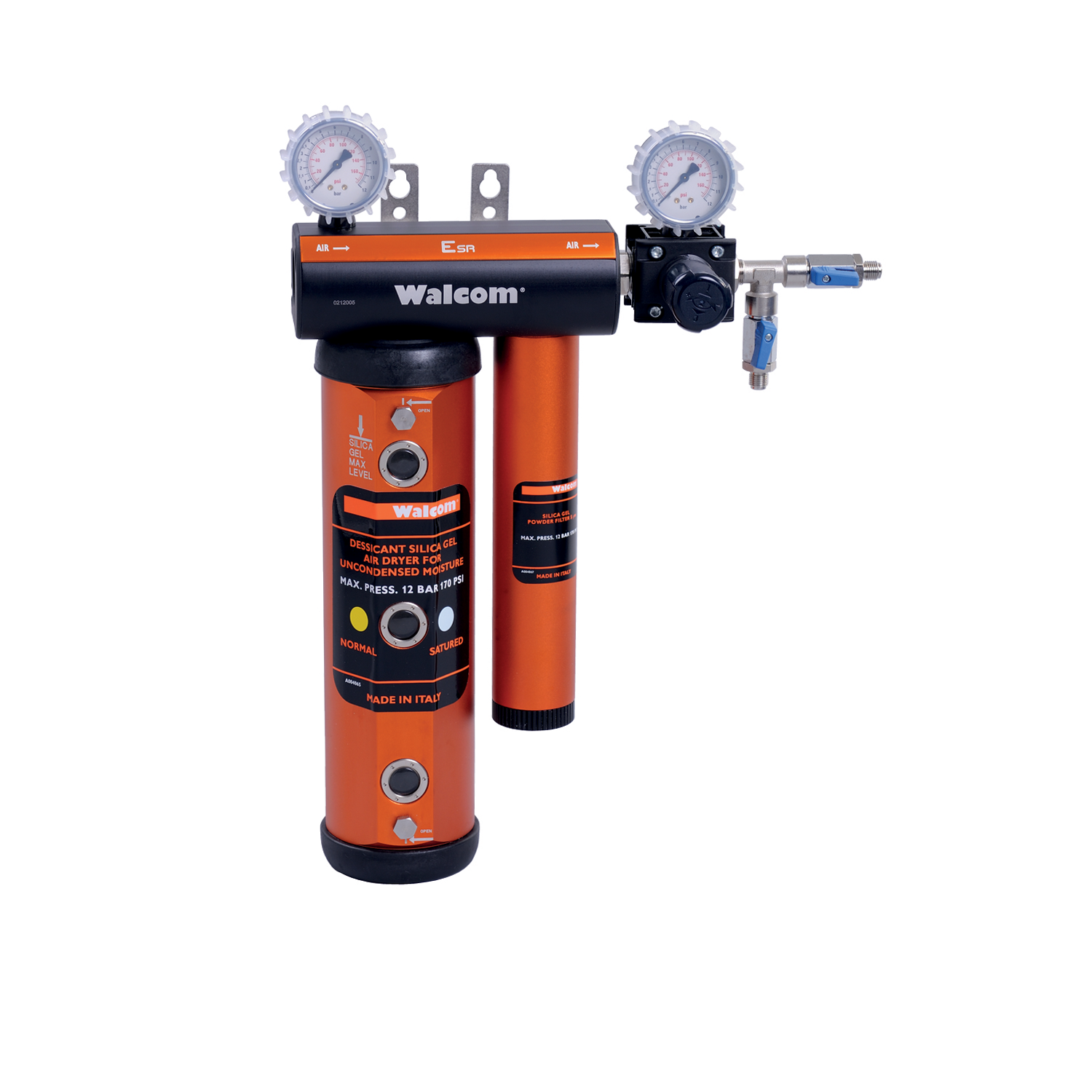

ESR

Ref.: 60129/11
: Silica drying unit, to eliminate residual humidity in compressed air, to be used in combination with an air pre-filtering group in a painting booth.
: Provided with an indicator to show saturation of the silica which can be replaced or regenerated (4 hours at 135°C).
: Filter to eliminate dust generated by silica 5µ.
Central body: Anodized aluminium
Pressure adjuster: Membrane system and automatic decompression
Air inlet: F 3/4"
Air outlet: Nr. 2 from M 1/4"
Filtering power: Air 5µ
Working pressure: 12 bar
Air consumption: 1200 l/min to 6 bar
Weight: 11.5 Kg

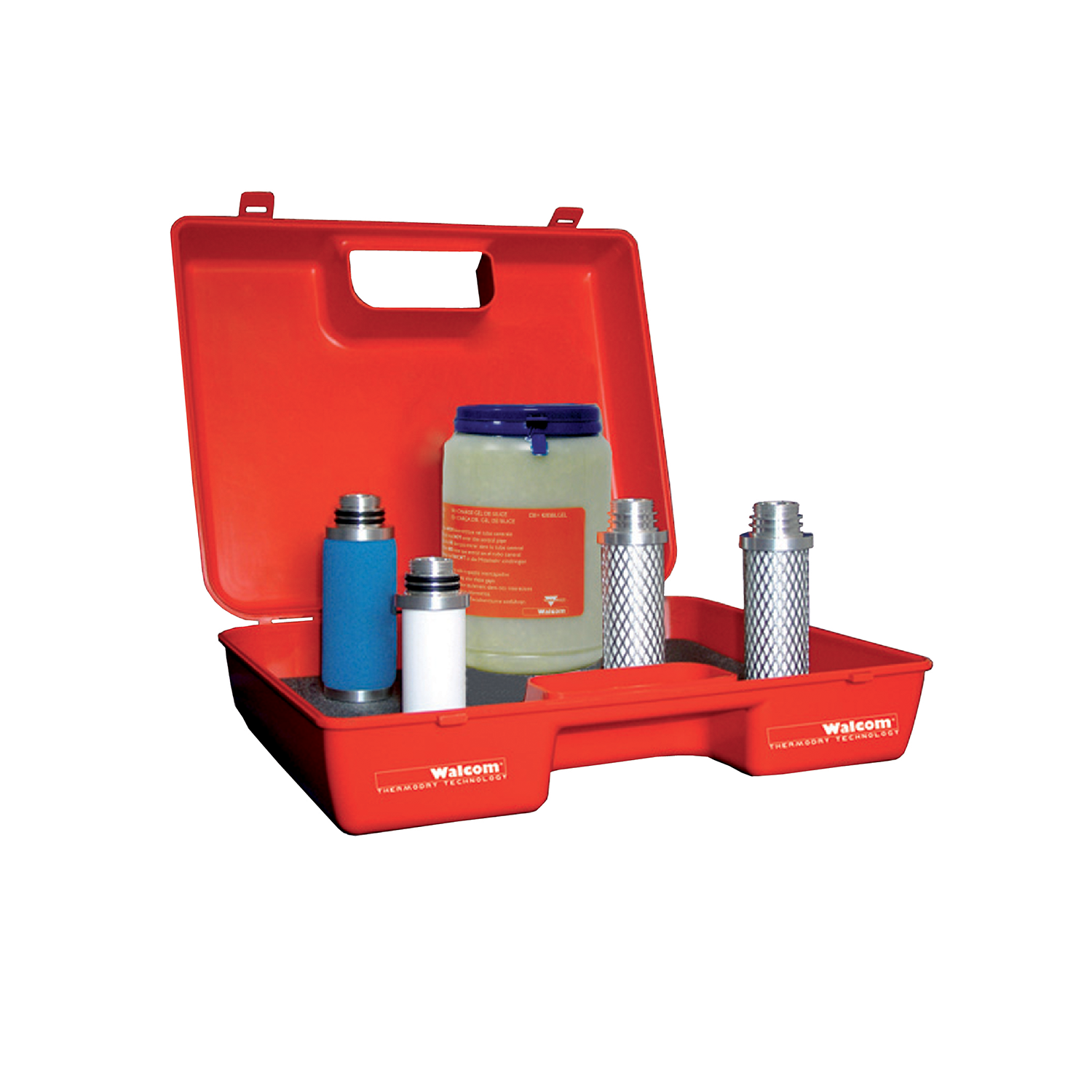

ThK

Ref.: 60134
: The kit comes in a case for scheduled FSRD4 annual equipment maintenance.
Ref.: 60136
: The kit comes in a case for scheduled FSRD3 annual equipment maintenance.
Featuring: - Nr. 1 sythentic fibre water filter: to be replaced once a year;
: - Nr. 1 coalescent oil filter: to be replaced once a year;
: - Nr. 2 active carbon filters: to be replaced every 6 mounths (Only Ref.60134);
: - Nr. 1 1.3 Kg silica gel package.
Weight: 2.28 Kg FSRD4 - 2.18 Kg FSRD3

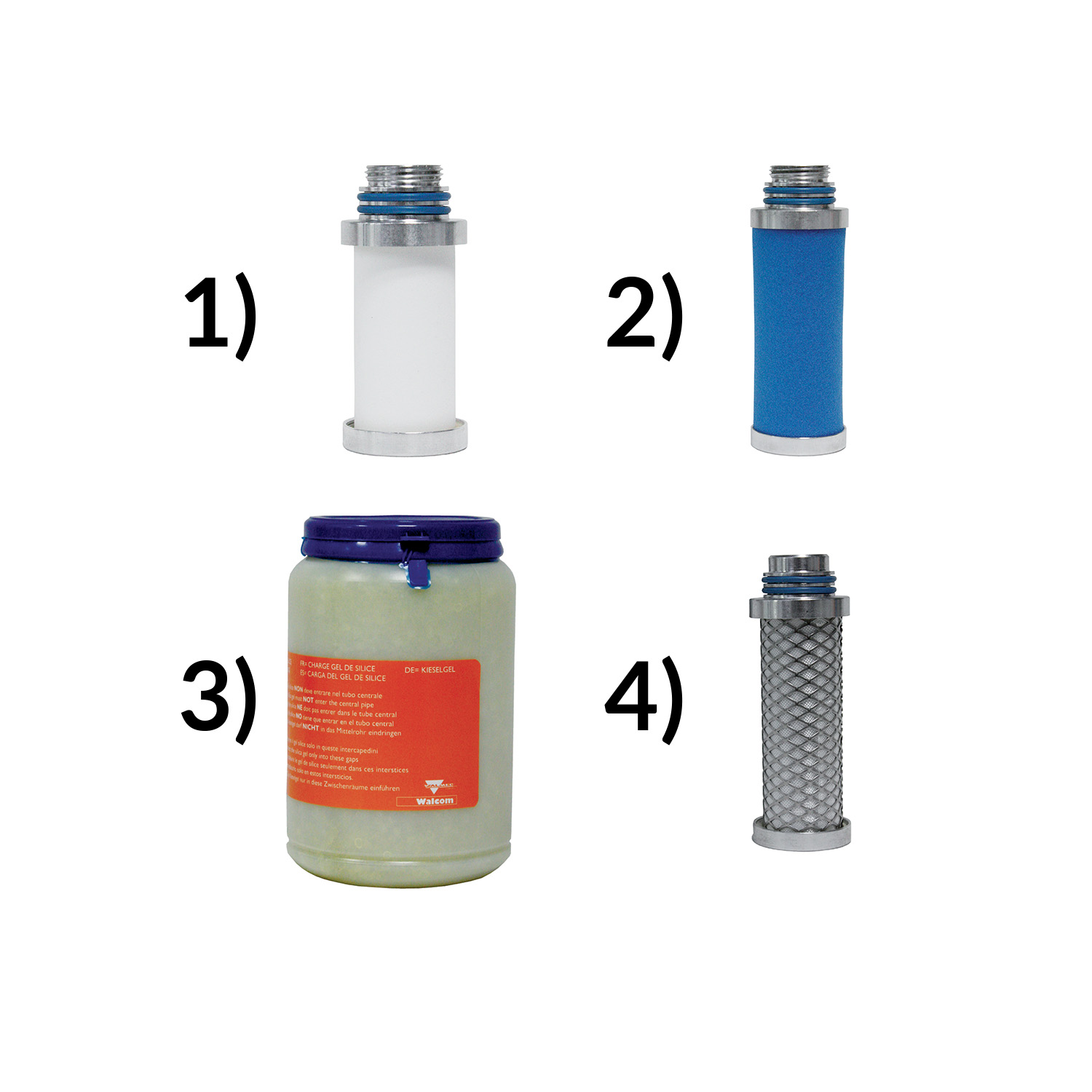

SPARE PARTS FOR AIR FILTRATION SYSTEM

: 1) Water filter
Ref.: 3064087
: Synthetic fiber to eliminate condensation. Filtration capacity 5 micron.
Package: 1 pz.
Weight: 59 g
: 2) Oil filter
Ref.: 3063162
: Cartridge to eliminate oil impurities. Filtration capacity 0.01 micron
Package: 1 pz.
Weight: 79 g
: 3) Silica gel
Ref.: 3063236
: Silica gel beans to remove any residual humidity (it can be regenerated in 4h at 135°C, it can last maximum 1 year).
Package: 1 pz.
Weight: 1.3 kg
: 4) Active charcoal
Ref.: 3064003A
: This filter remove any residual impurities, gas or vapor. Max residual <0.00003mg/m3
Package: 1 pz.
Weight: 8 g
