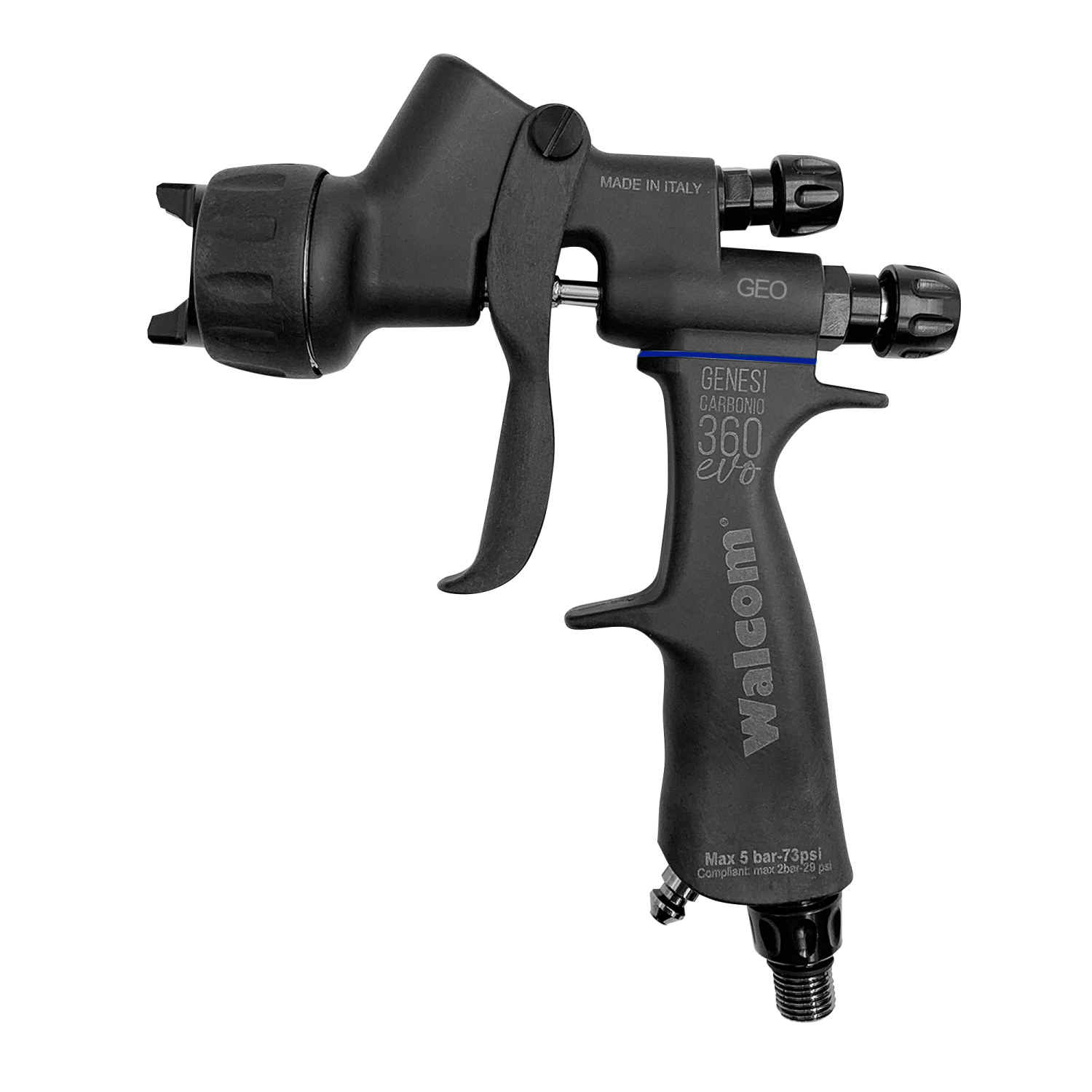

Genesi Carbonio 360 GEO

Ideal for waterborne base and solvent

One of the masterpiece of the Walcom® brand, the GEO dual atomization system, hvlp in respect to the California norm n. 1151 SCAQMD with 0,7 bar at the aircap and more then 65% transfer efficiency, perfect for color match. The dual atomizing nozzle, 6 pre-atomizing holes, excellent product lay out, unique system that delivers incredible performance. It’ s very low in air consumption 425 l/min, saving air and consequently energy.

discover all the Genesi Carbonio 360 GEO serie

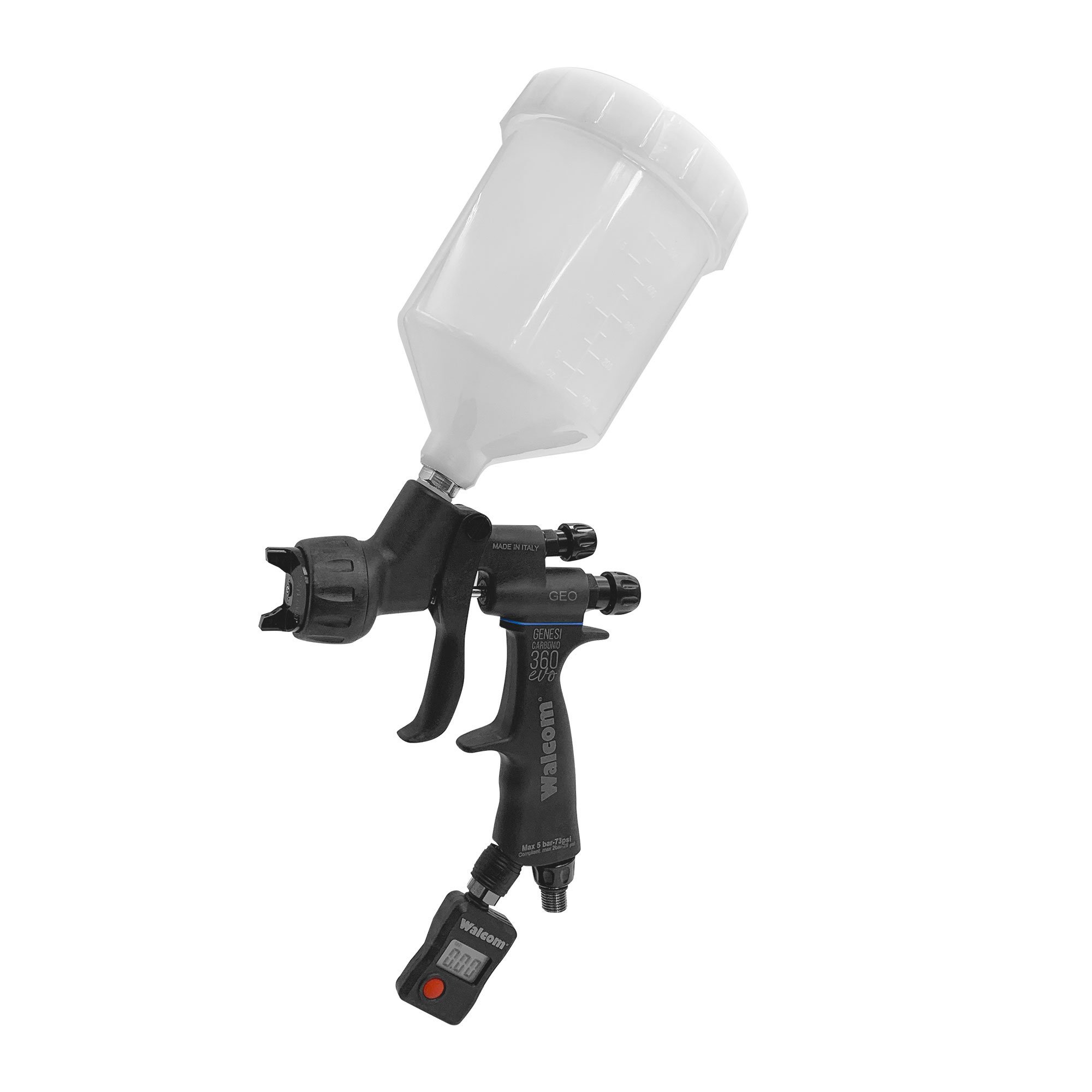

Genesi Carbonio 360 GEO - POM C 680 cc with regulator
Ref.
9930**
Cup
POM C 680 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
425 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
Regulator
Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
Add noozle diameter to Ref. (**)
Genesi Carbonio 360 GEO - Aluminium 750 cc with regulator
Ref.
9935**
Cup
Aluminium 750 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
425 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
Regulator
Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
Add noozle diameter to Ref. (**)

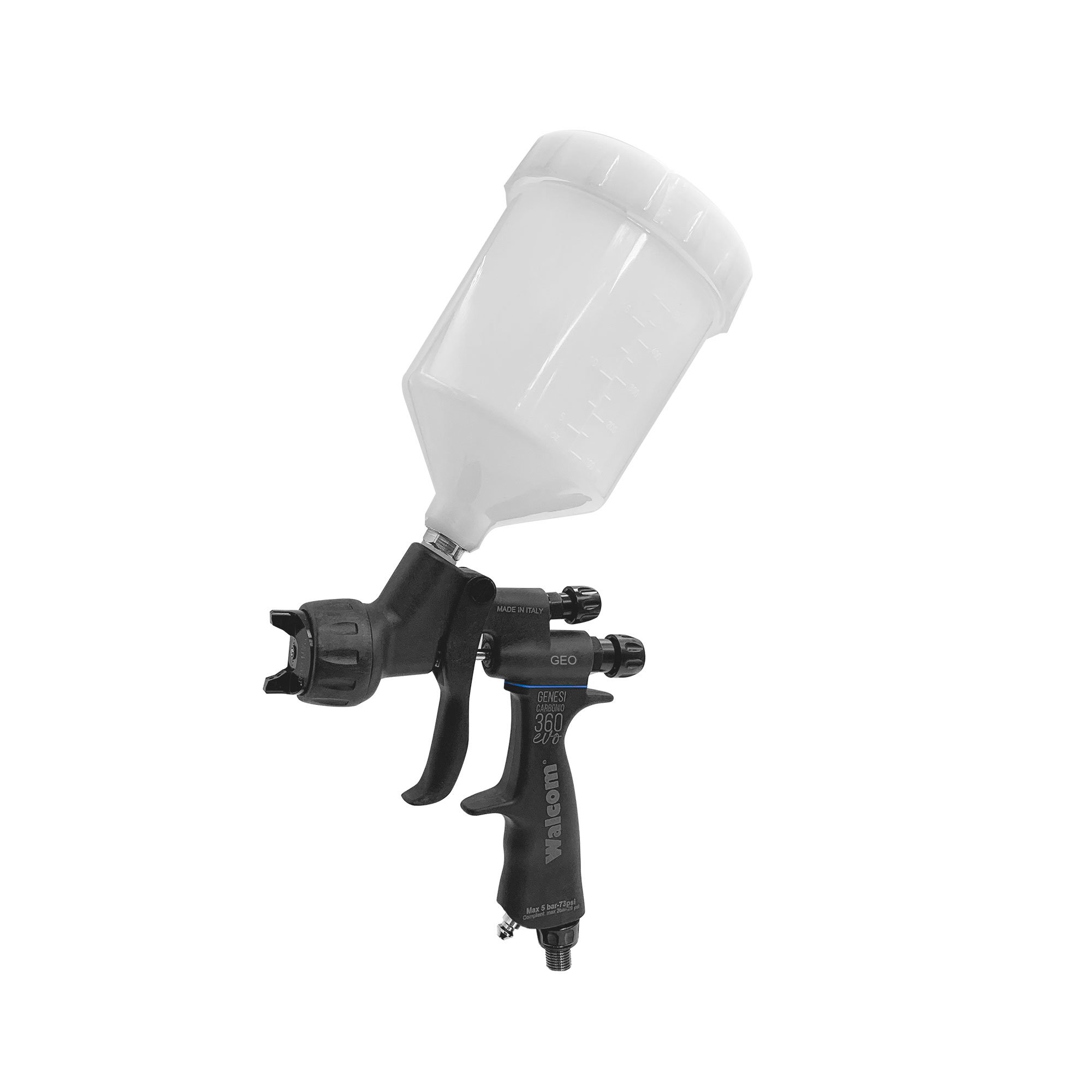

Genesi Carbonio 360 GEO - POM C 680 cc
Ref.
9920**
Cup
POM C 680 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
425 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
Add noozle diameter to Ref. (**)

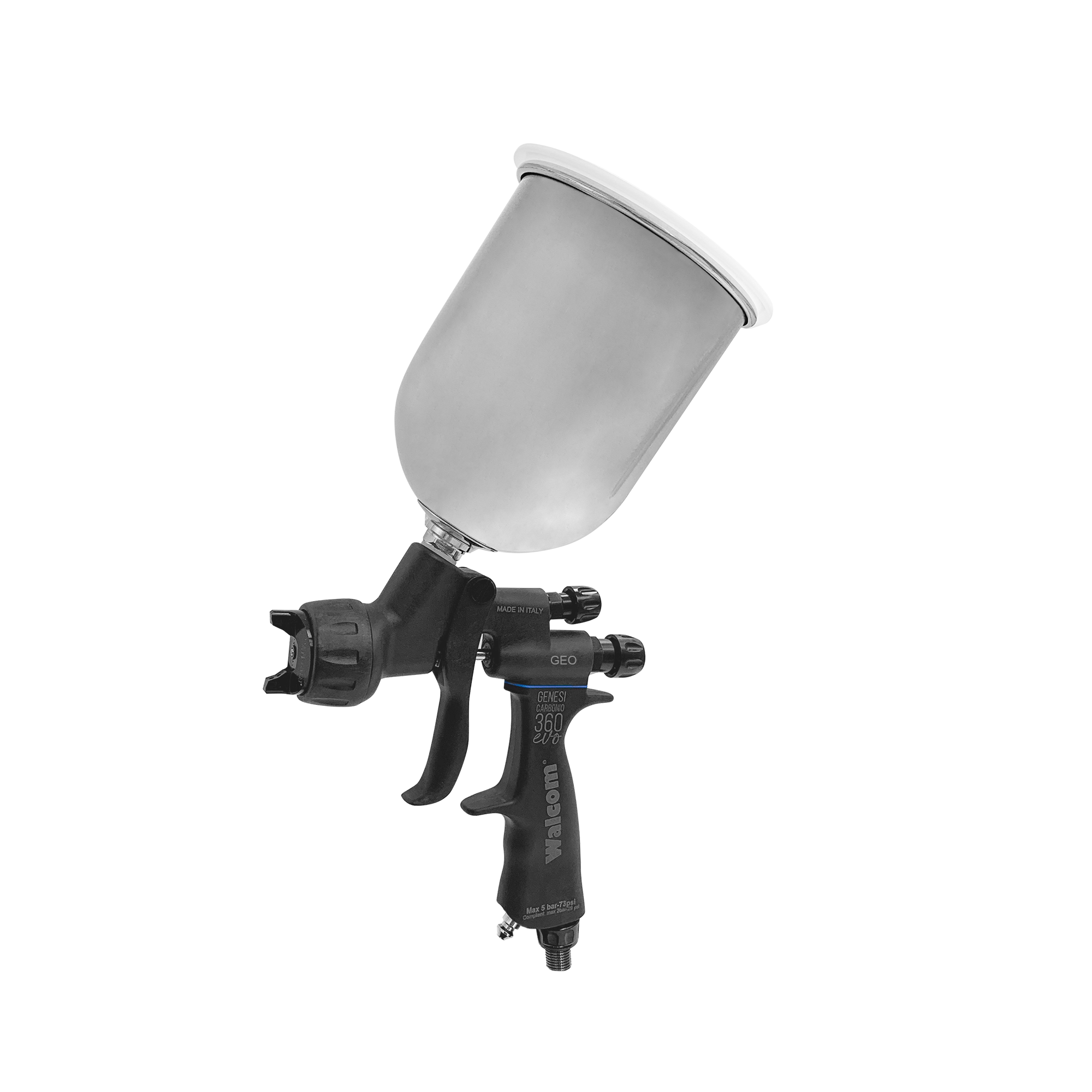

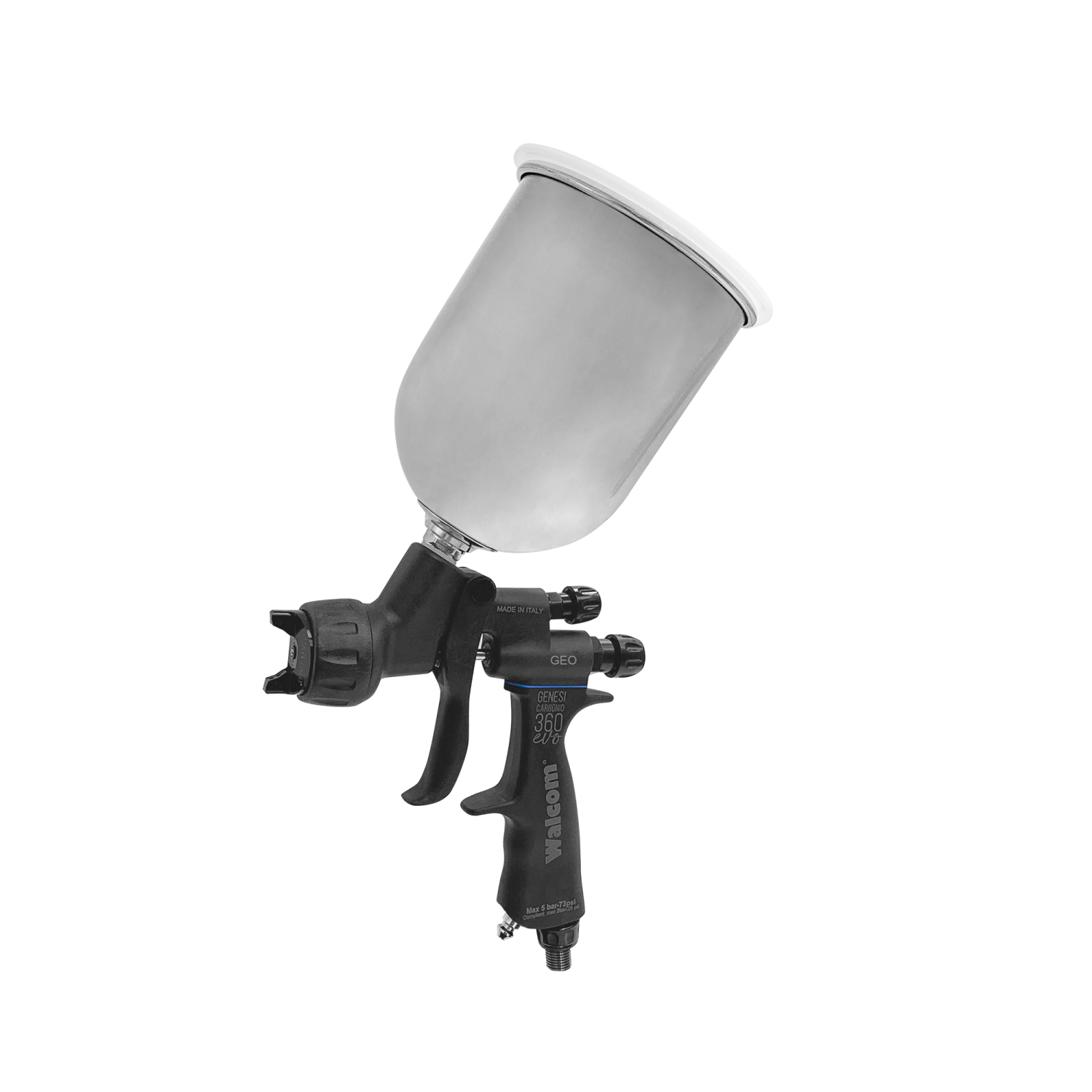

Genesi Carbonio 360 GEO - Aluminium 750 cc
Ref.
9925**
Cup
Aluminium 750 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
425 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
Add noozle diameter to Ref. (**)

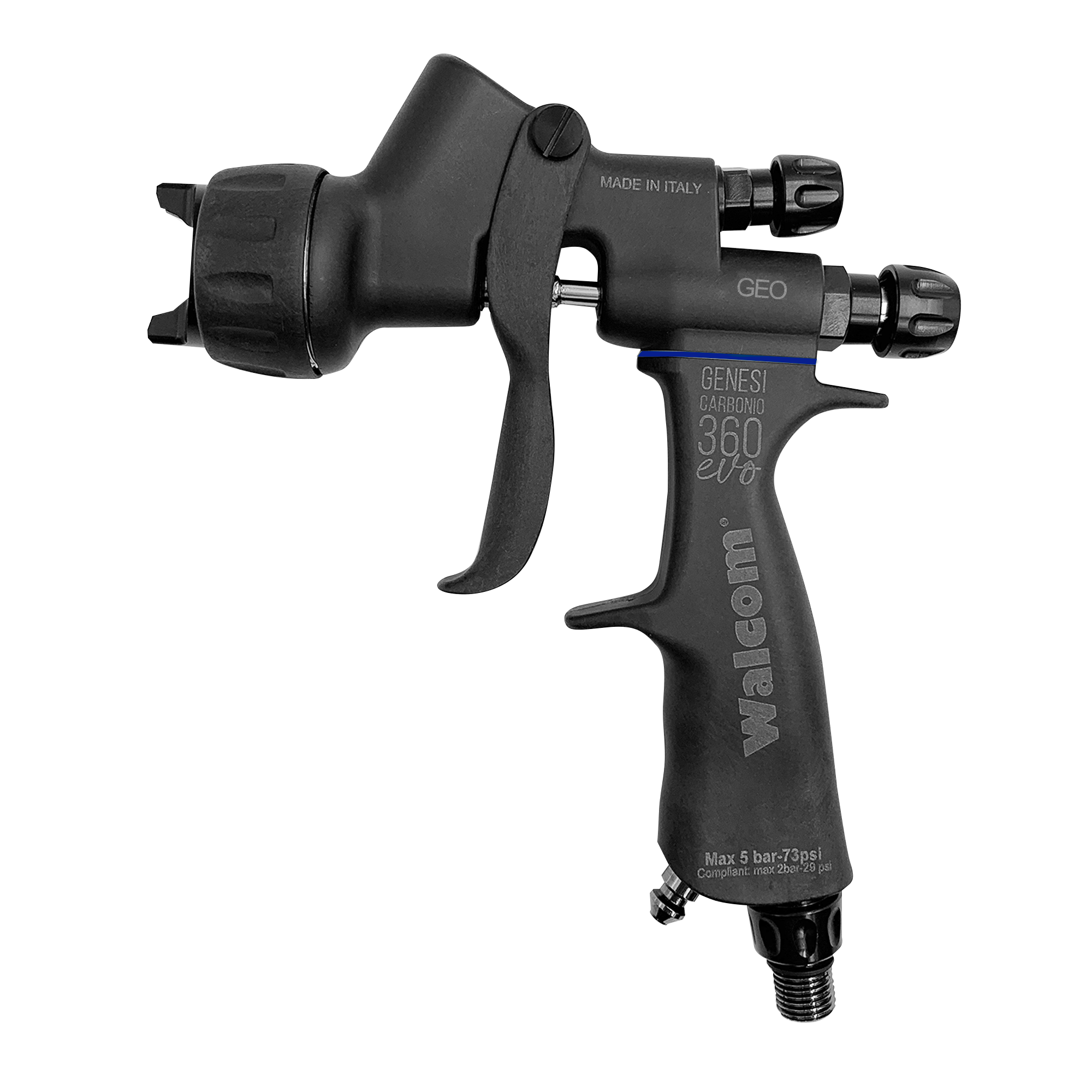

Genesi Carbonio 360 GEO
Ref.
9960**
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
425 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.9
Add noozle diameter to Ref. (**)

packaging

Two types of package: 1) BOX. Cardboard box package includes: sprayguns, rebuild kit (spring, seals, air valve) wrench tool, mineral lube oil, instruction manual and warranty. 2) SUITCASE. Rigid plastic suitcase includes: spraygun, air control with gauge ( for item id 9730** and 9735**), rebuild kit (spring, seals, air valve), cup, wrench tool, mineral lube oil, instruction manual and warranty.

packaging
