Thermodry accessories

Discover the TD accessories

Hot air fan blowers to use between coats to improve the drying time, thermojet and fanjet.

discover all the Thermodry accessories serie

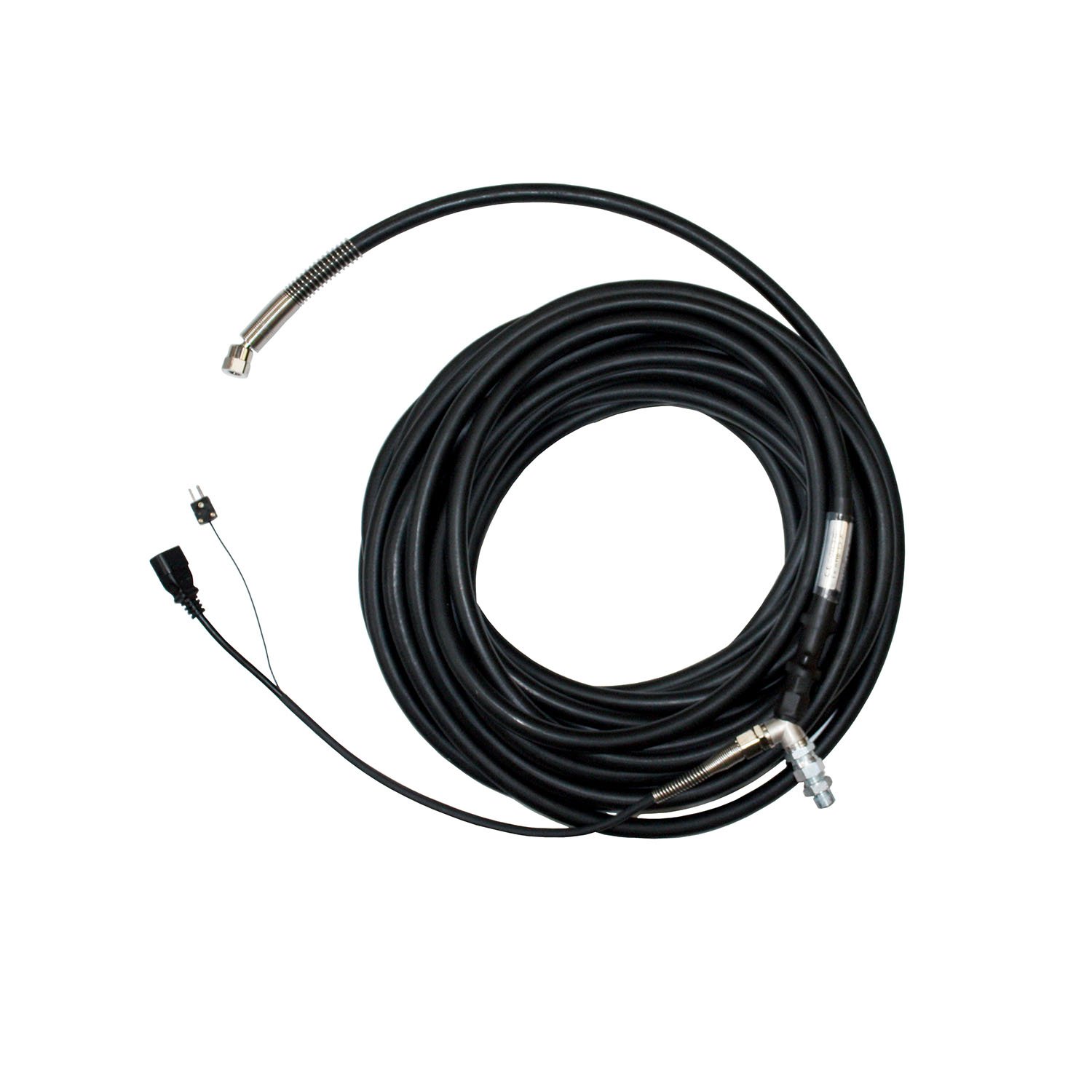

ThT
Ref.
60161
Length
12 m
Ref.
60163
Length
17 m
Ref.
60162
Length
22 m
Vulcanised, antistatic rubber heated air hose.
Power
1200 W
Thermoregulation
Internal J thermocouple
Dimensions
10x15 mm
Length
12 / 17 / 22 m
Weight
2.4 / 4 / 5 Kg

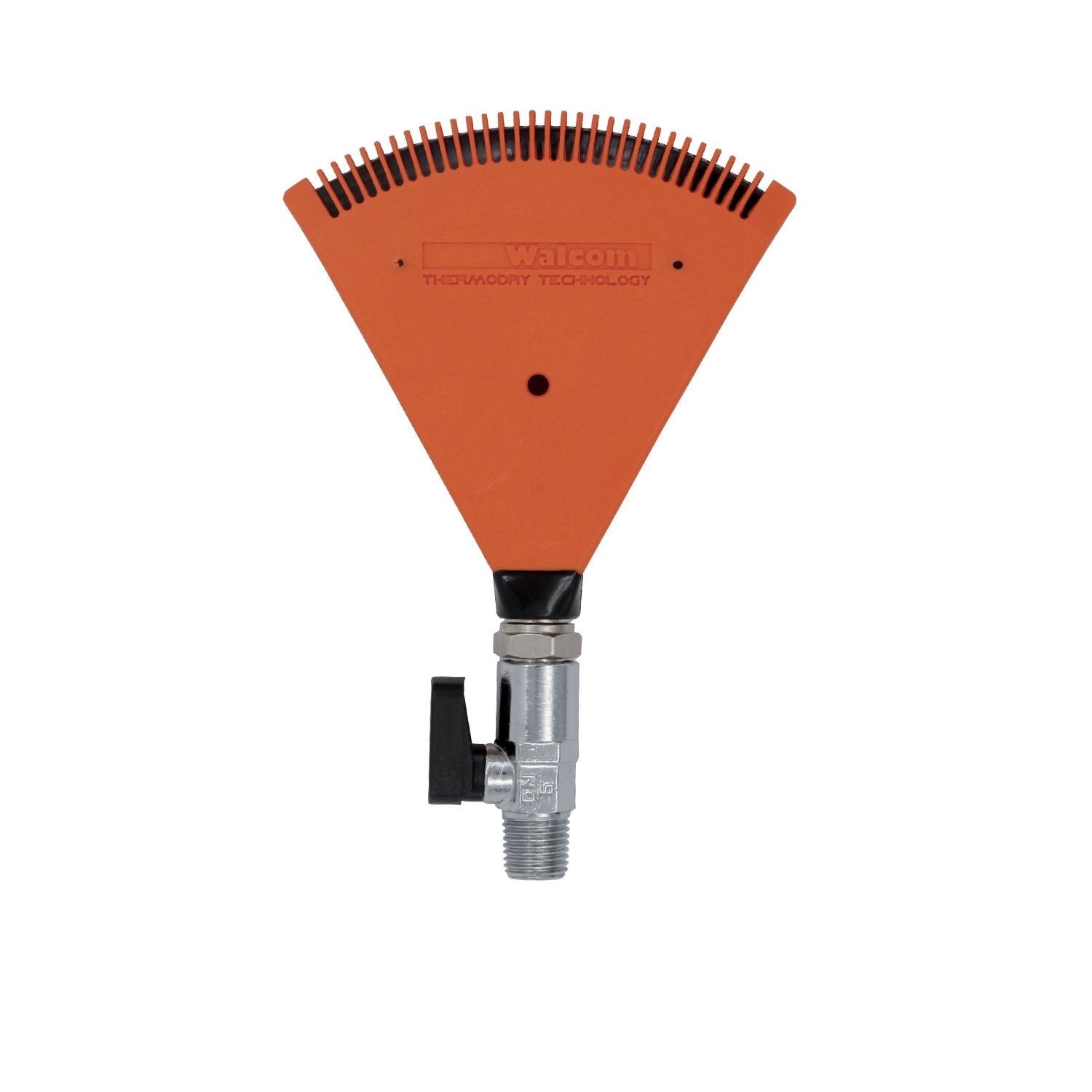

Air Blower Pro
Ref.
60150/BP
Continuous fl ow drying gun 70°C for basecoat, equipped with air regulator.
Blow distance
- 40-50 cm blow distance in the first phase
- 10-20 cm in final drying
Body
Metallic
Nozzle
Nylon and rubber radial
Air consumption
265 l/min to 3 bar
Weight
300 g

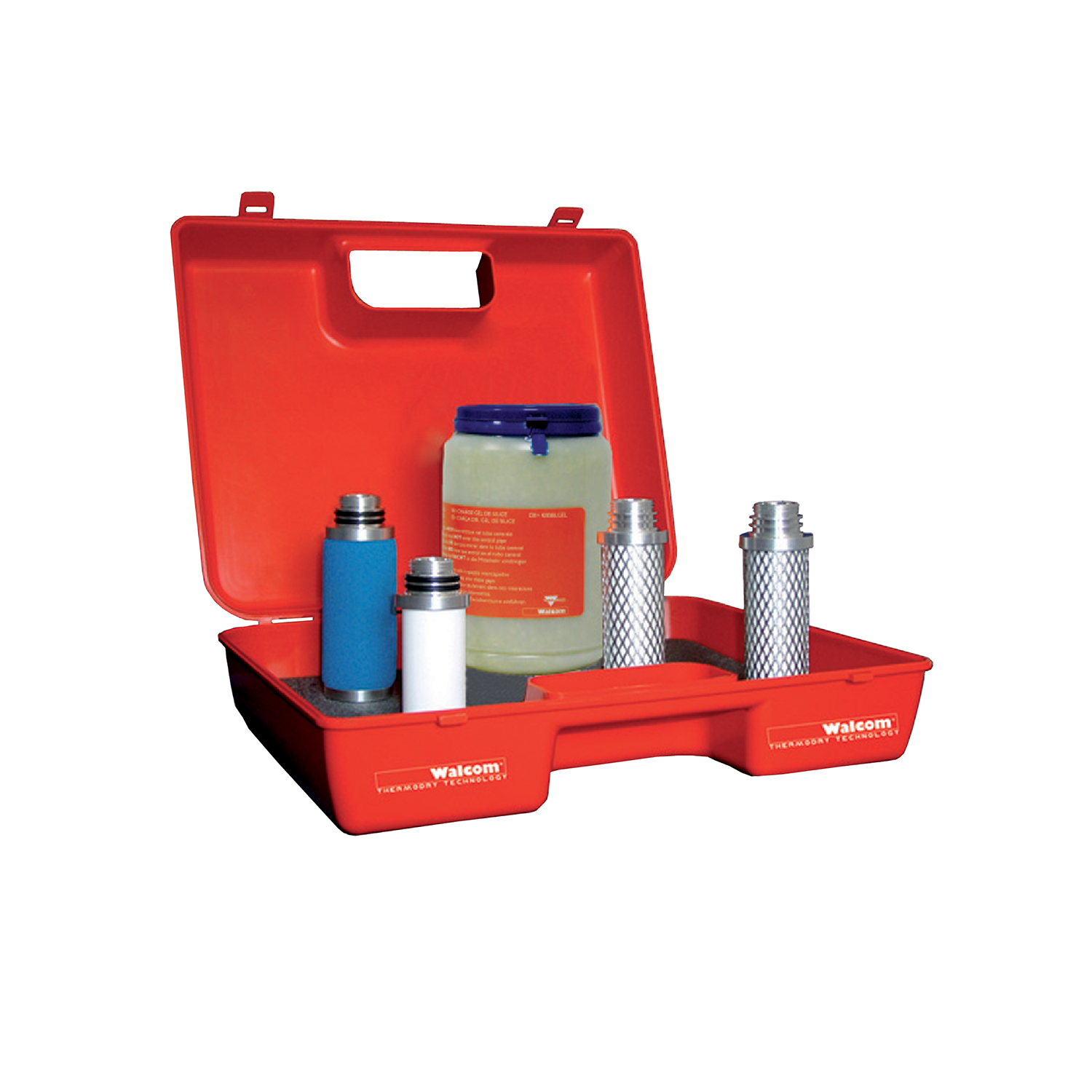

ThK
Ref.
60134
The kit comes in a case for schedule TD3 Pro annual equipment maintenance.
Featuring
- Nr. 1 sythentic fibre water filter: to be replaced once a year;
- Nr. 1 coalescent oil filter: to be replaced once a year;
- Nr. 2 active carbon filters: to be replaced every 6 mounths;
- Nr. 1 1.3 Kg silica gel package.
Weight
2.28 Kg

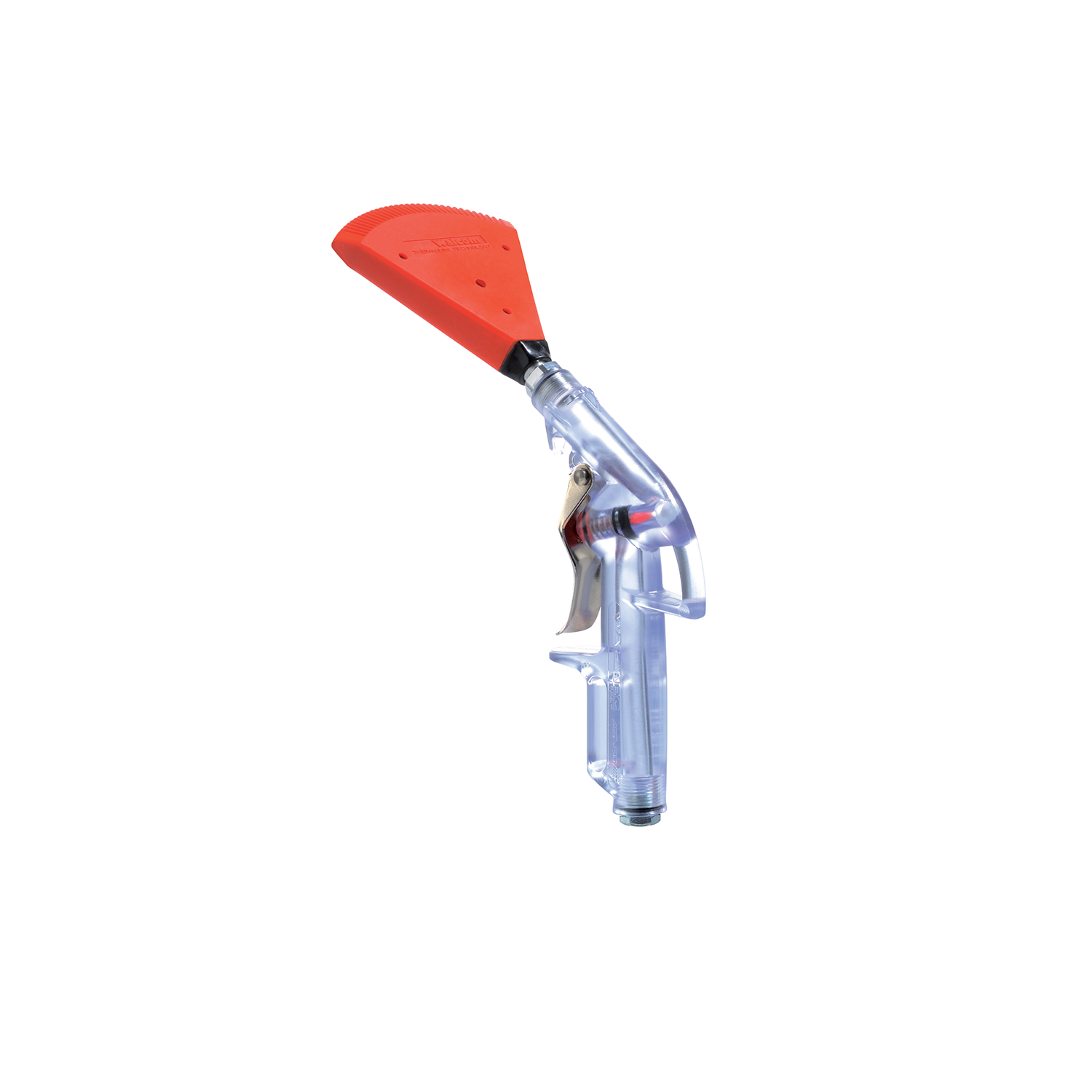

ThJ
Ref.
60133
Drying gun 70 °C for basecoat
40 - 50 cm blow distance in the first phase; 20 - 30 cm in final drying
Body
Heatproof nylon
Noozle
Nylon and rubber radial
Progressive valve
Air consumption
265 l/min to 3 bar
Weight
250 g

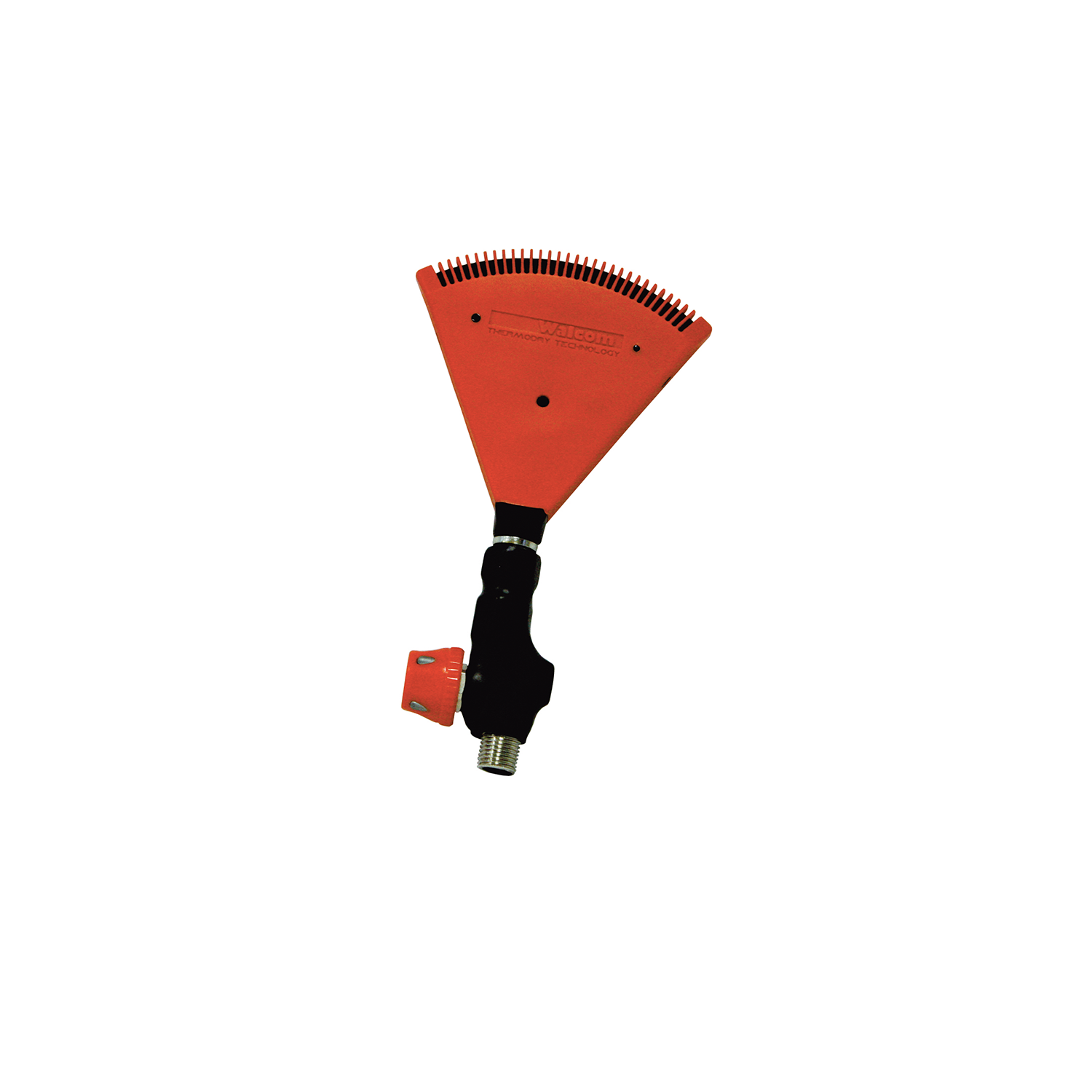

ThJ/R
Ref.
60150
Continuous flow drying gun 70 °C for basecoat, equipped with air regulator.
40 - 50 cm blow distance in the first phase; 20 - 30 cm in final drying
Body
Metallic, lined with a heatproof membrane
Noozle
Nylon and rubber radial
Air consumption
265 l/min to 3 bar
Weight
300 g

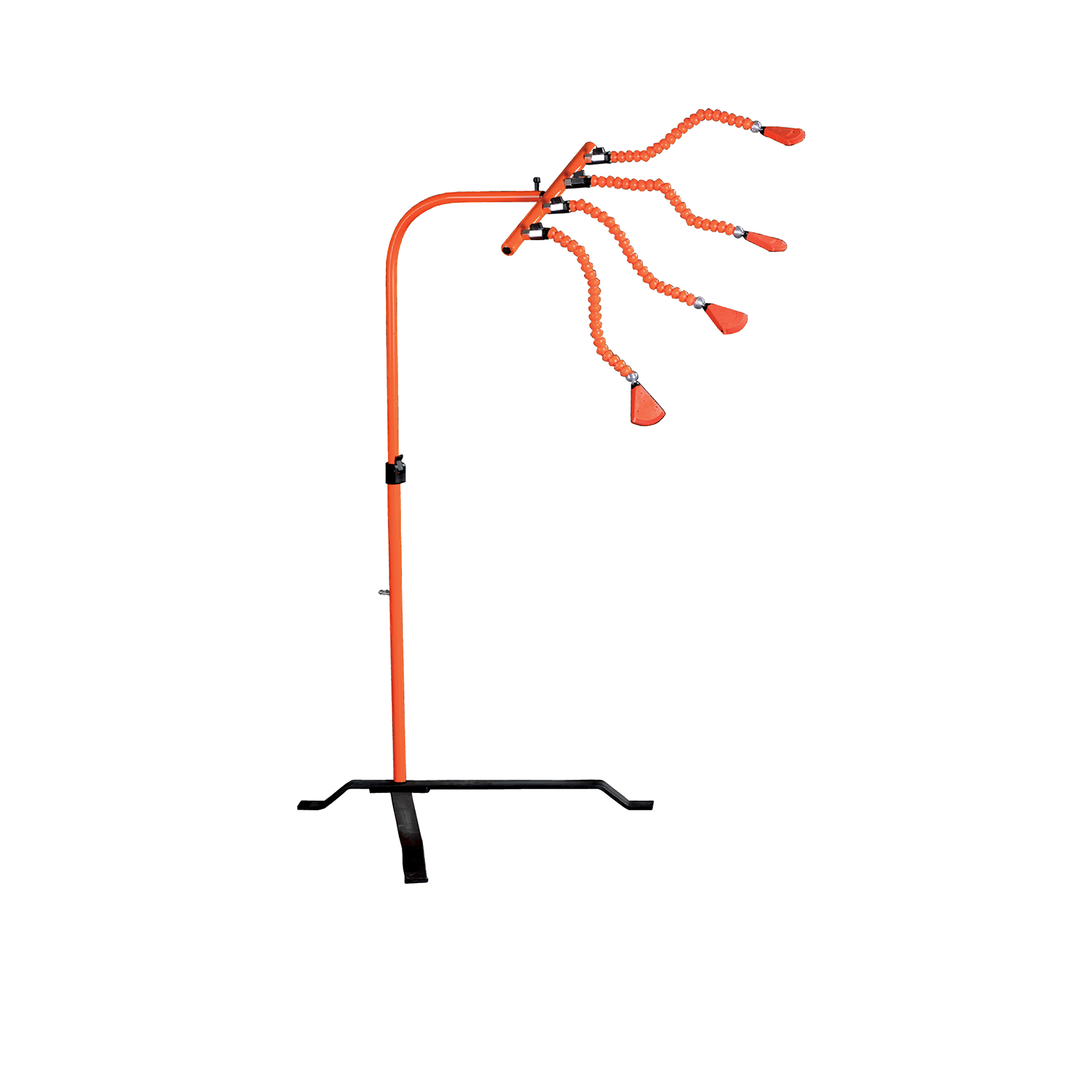

ThS
Ref.
60128
Support for nr. 4 ThJ noozles for drying at 70 °C for basecoat.
Structure
Aluminium
Height
Adjustable from 130 to 180 cm
Tilt
Adjustable from 0° to 360°
40 - 50 cm blow distance in the first phase; 20 - 30 cm in final drying
Weight
11.3 Kg

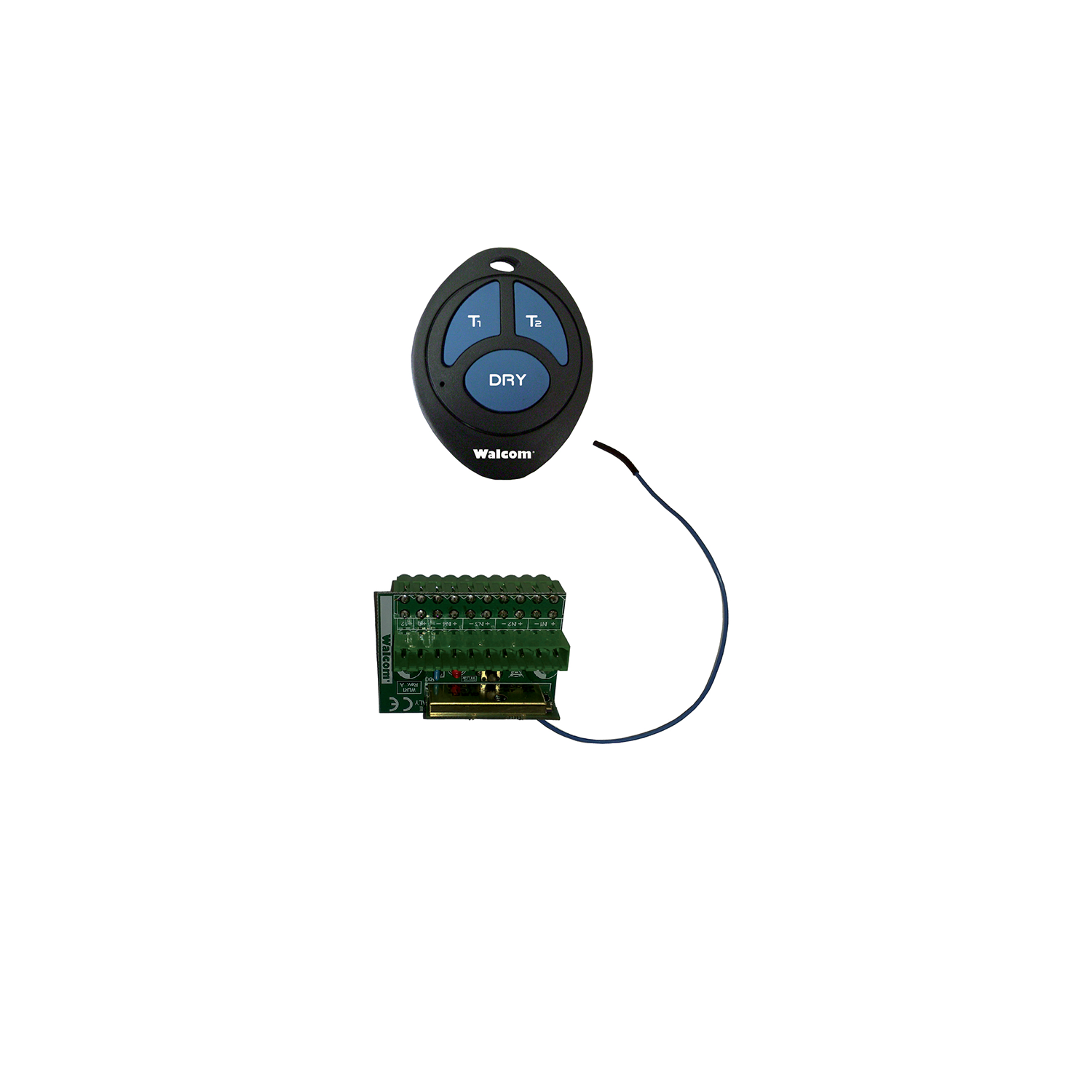

ThRC
Ref.
306476
Remote control for TD3 Pro and TD1 Pro heat conditioner
3 factory set temperatures:
T1 = 42° for opaque base
T2 = 50° for transparent
DRY = 70° for base drying
Temperature can be changed by the operator.
Weight
489 g
ThTest
Ref.
60154
High precision instrument to measure TD generated air performance.
Temperature
Output temperature measurement (post air expansion)
Humidity
Residual humidity reading
Weight
600 g

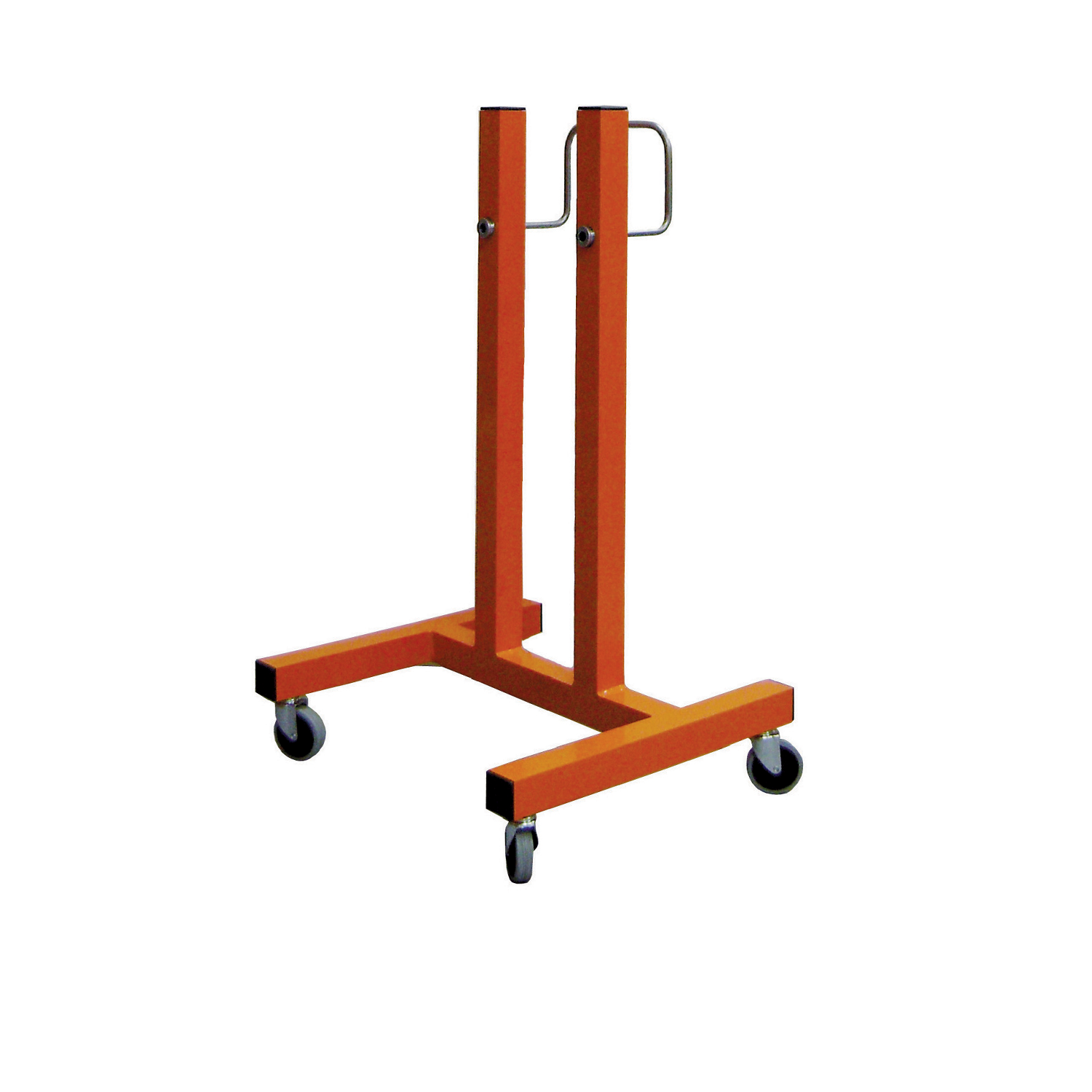

ThC
Ref.
3063303
Painted steel TD rack structure.
Permits easy TD3 Pro and TD1 Pro transport and use.
Weight
5.2 Kg

Compatible regulators

Compatible cups
