Serie Diecimila HTE

New and performing line of spray guns, replacing the famous 9000 models, its predecessor was one of the greatest in the industry. Developed following a new concept, air valve and needle on a single axis for more precision, functionality and easy maintenance. The spray gun body is nickeled plated aluminum, lighter for better handling; the air cap is nickeled plated brass to guarantee high performance in atomizing and ideal fan. HTE the new and high transfer efficiency system (>65%), an excellent atomizing quality by the 1.3 bar air cap pressure.

discover all the Serie Diecimila HTE serie

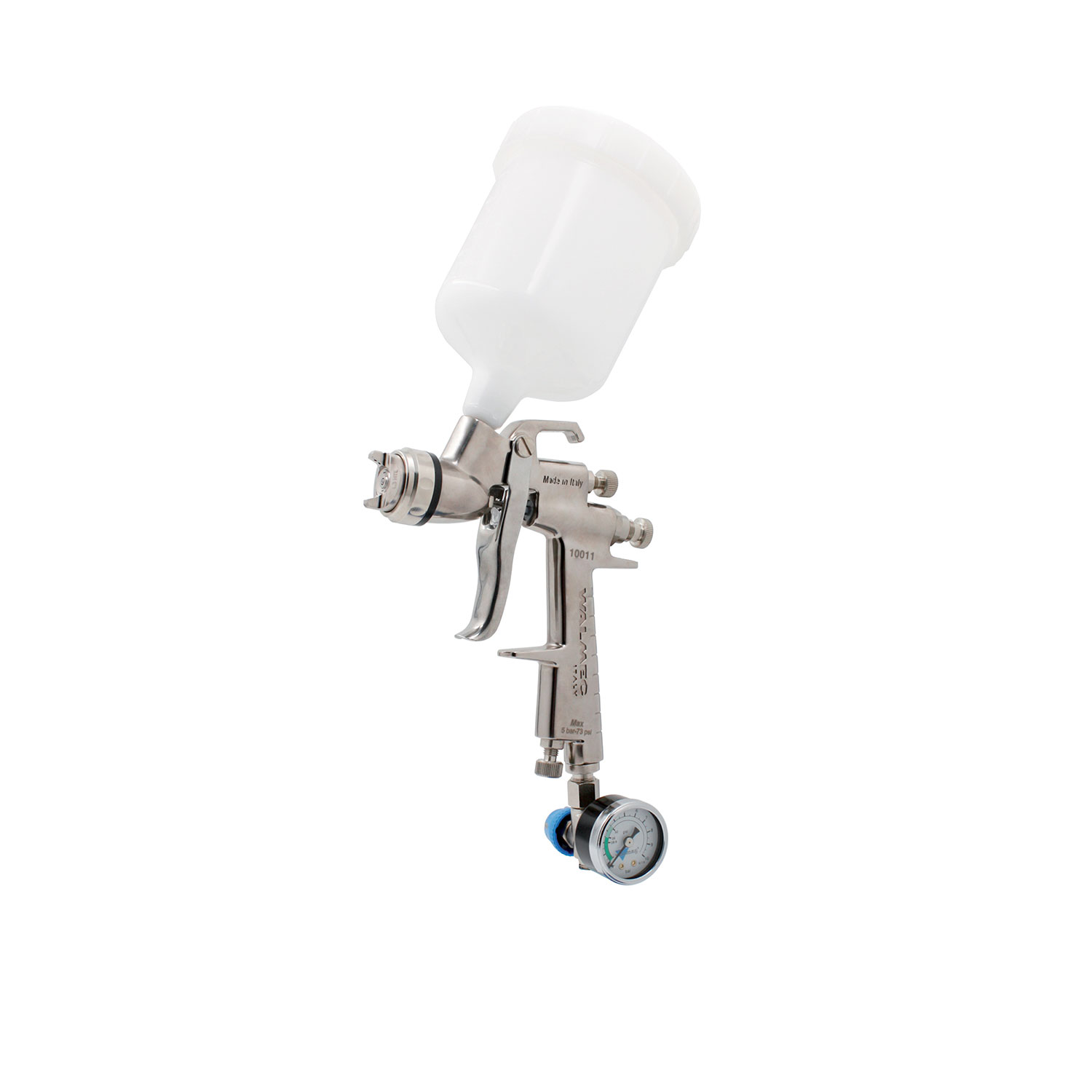

10011 HTE - Nylon 680 cc
Ref.
489**
Tank
Nylon 680 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
935 g
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)
10011 HTE - Alu 500 cc
Ref.
493**
Tank
Aluminium 500 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
935 g
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

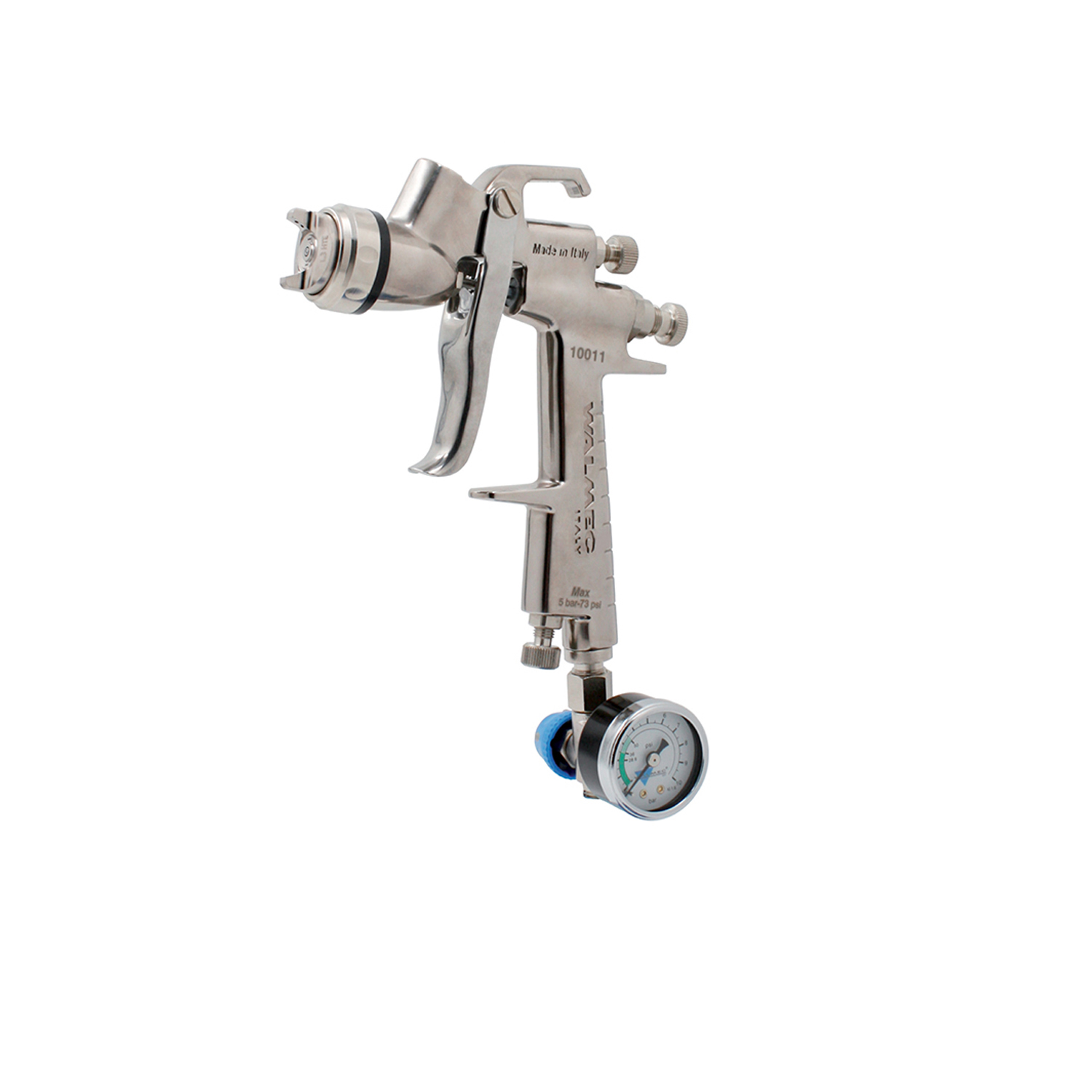

10011 HTE - Alu 750 cc
Ref.
488**
Tank
Aluminium 750 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
935 g
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

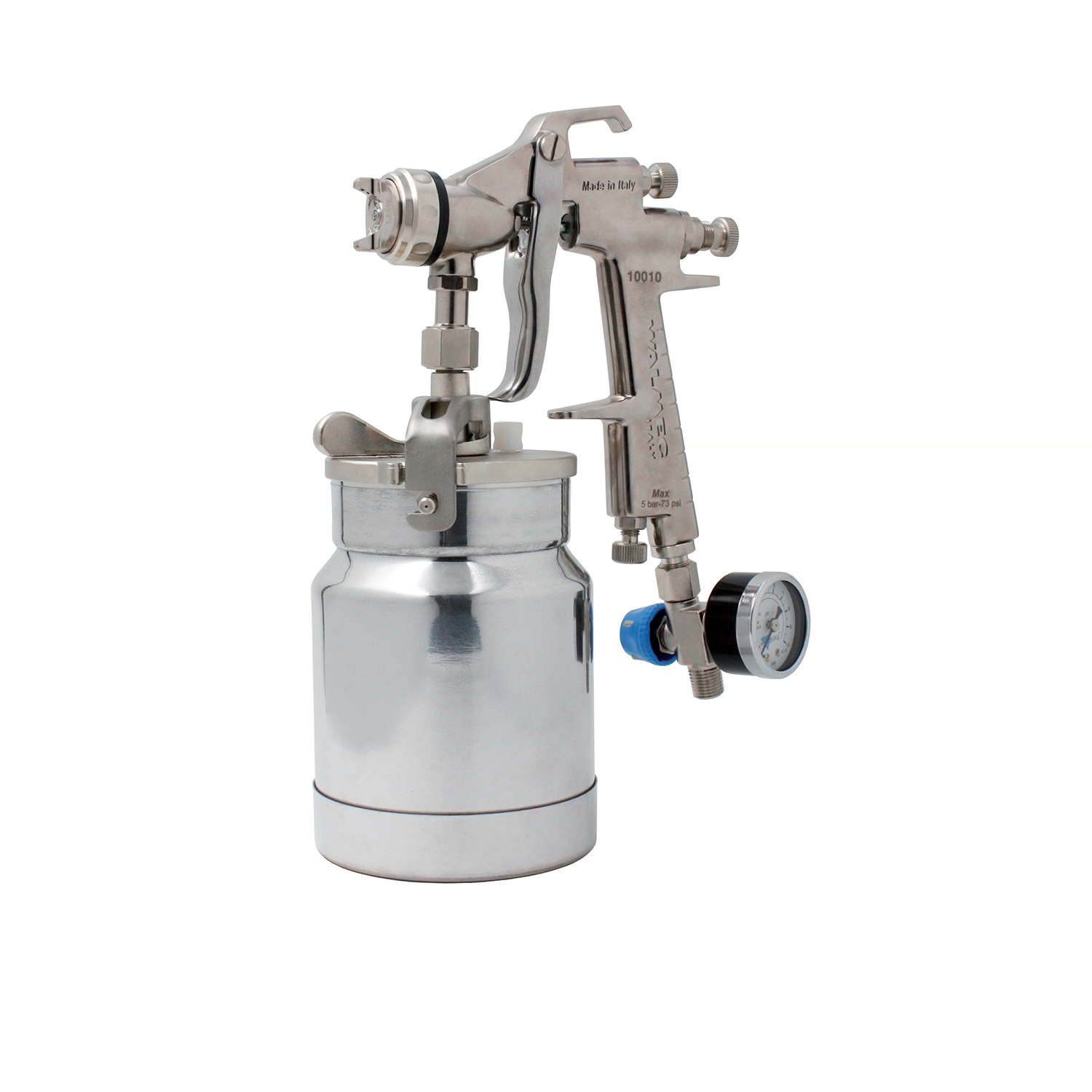

10010 HTE - Camlock suction cup
Ref.
484**
Cup
Aluminium camlock suction cup 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
1.15 Kg
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

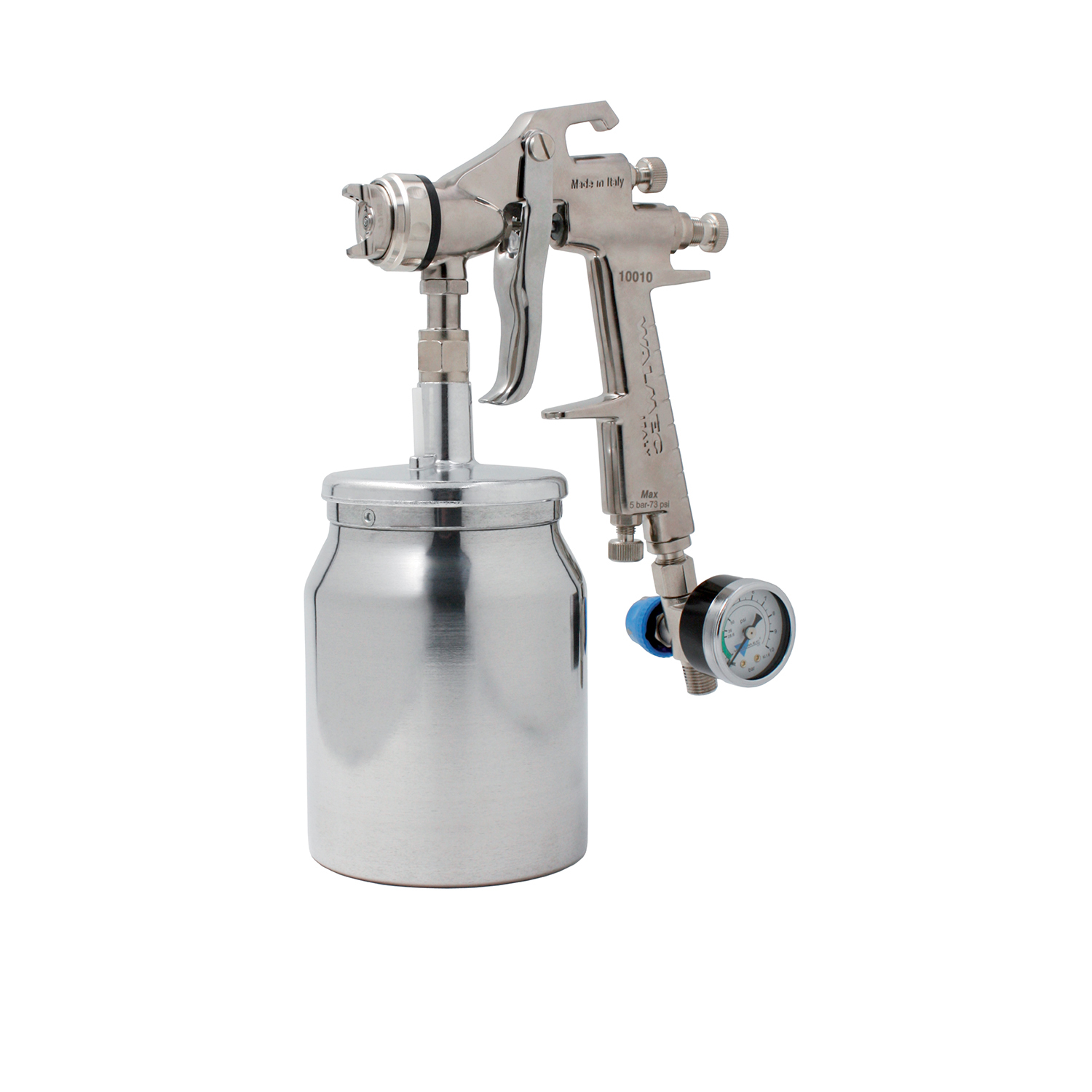

10010 HTE - Bayonet suction cup
Ref.
494**
Cup
Aluminium bayonet suction cup 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
1.15 Kg
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

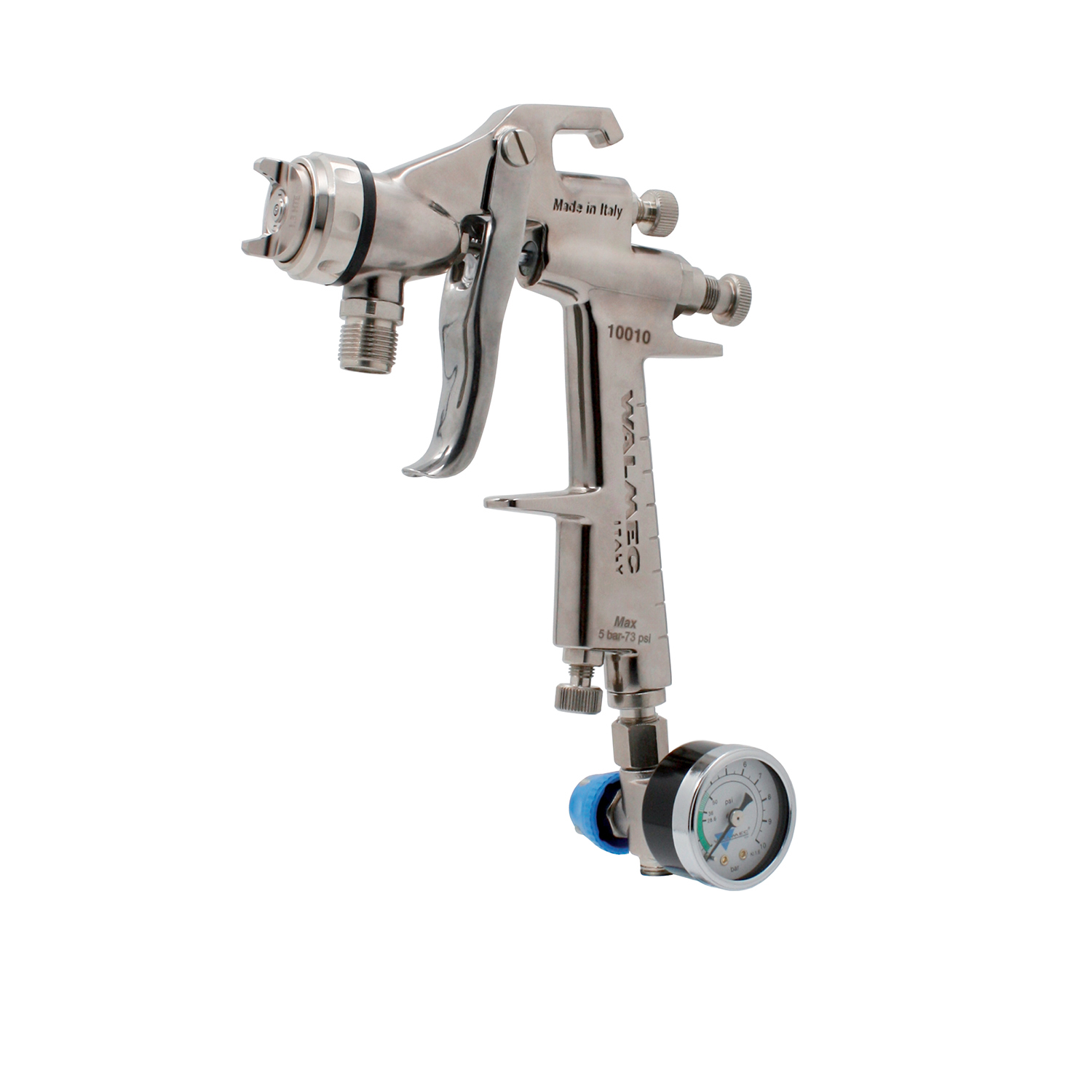

10010/SP HTE
Ref.
483**
Pressurized containers
Low pressure pumps product inlet M1/4”
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
750 g
Operating air pressure
2.0-2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)
10011 HTE HD
Ref.
499**
Pressurised gravity cup
Product inlet M 1/4”
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
1.25 Kg
Operating air pressure
2.0-2.5 bar
Air consumption
240 - 280 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Double spray gun air inlet pressure regulator and pressurised cup with pressure gauge
Add nozzle diameters to Ref. (**)

Compatible regulators

Compatible cups

packaging

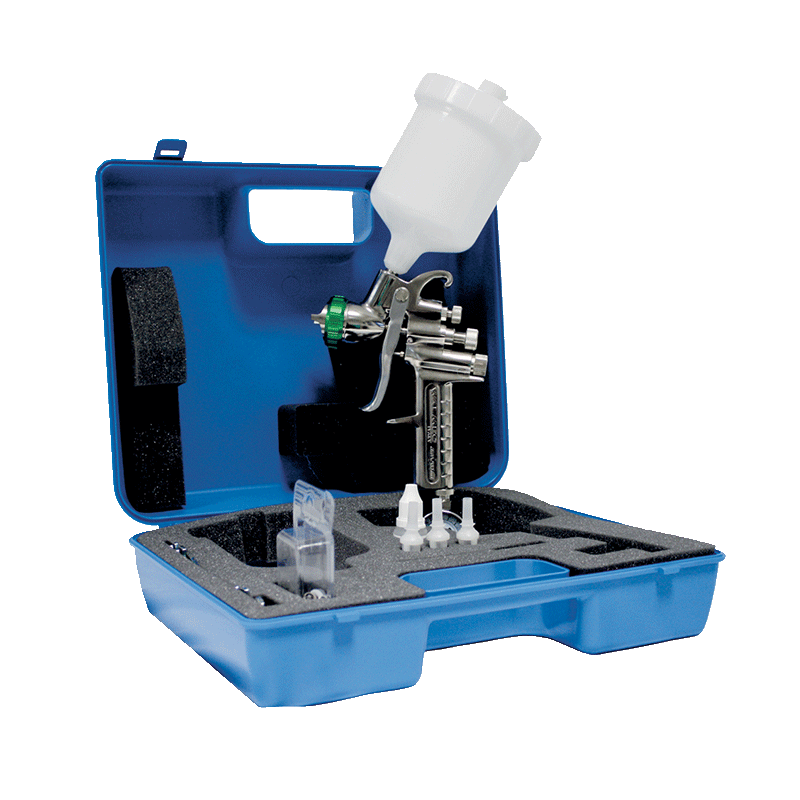

All spray guns of the Diecimila series are supplied in handy rigid plastic suitacases containing all the accessories for a correct cleaning and maintenance.
