Serie Diecimila HVLP

New and performing line of spray guns, replacing the famous 9000 models, its predecessor was one of the greatest in the industry. Developed following a new concept, air valve and needle on a single axis for more precision, functionality and easy maintenance. The spray gun body is nickeled plated aluminum, lighter for better handling; the air cap is nickeled plated brass to guarantee high performance in atomizing and ideal fan. HVLP as from norm n. 1151 SCAQMD, 0.7 bar pressure at the air cap and over 65% transfer efficiency. Low air consumption 230 l/min, LV system (low volume) it makes it a very efficient tool, able to perform even with smaller compressors.

discover all the Serie Diecimila HVLP serie

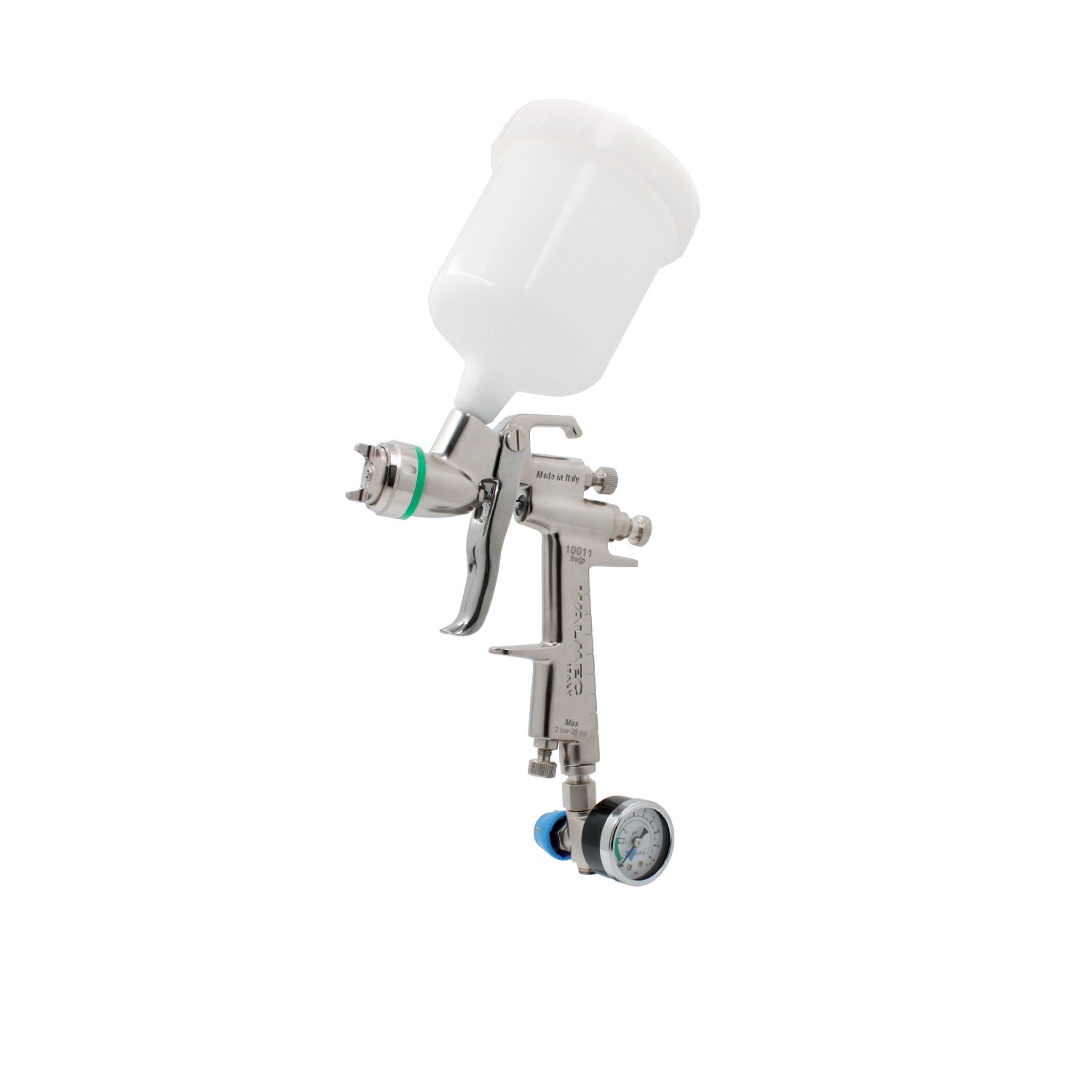

10011 HVLP - Nylon 680 cc tank
Ref.
480**
Tank
Nylon 680 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
935 g
Operating air pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)
10011 HVLP - Alu 500 cc tank
Ref.
481**
Tank
Aluminium 500 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
835 g
Operating air pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

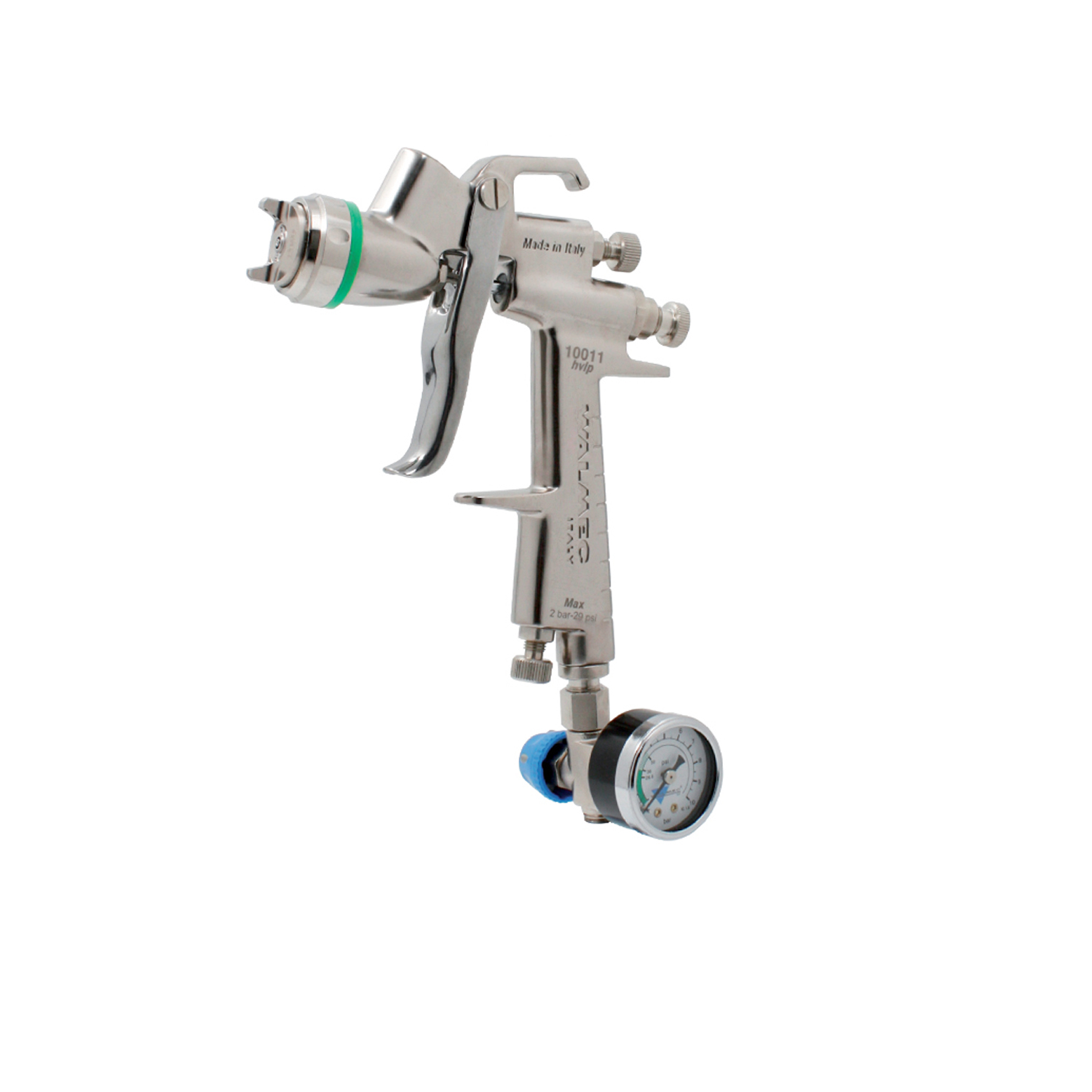

10011 HVLP - Alu 750 cc
Ref.
482**
Tank
Aluminium 750 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
835 g
Operating air pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

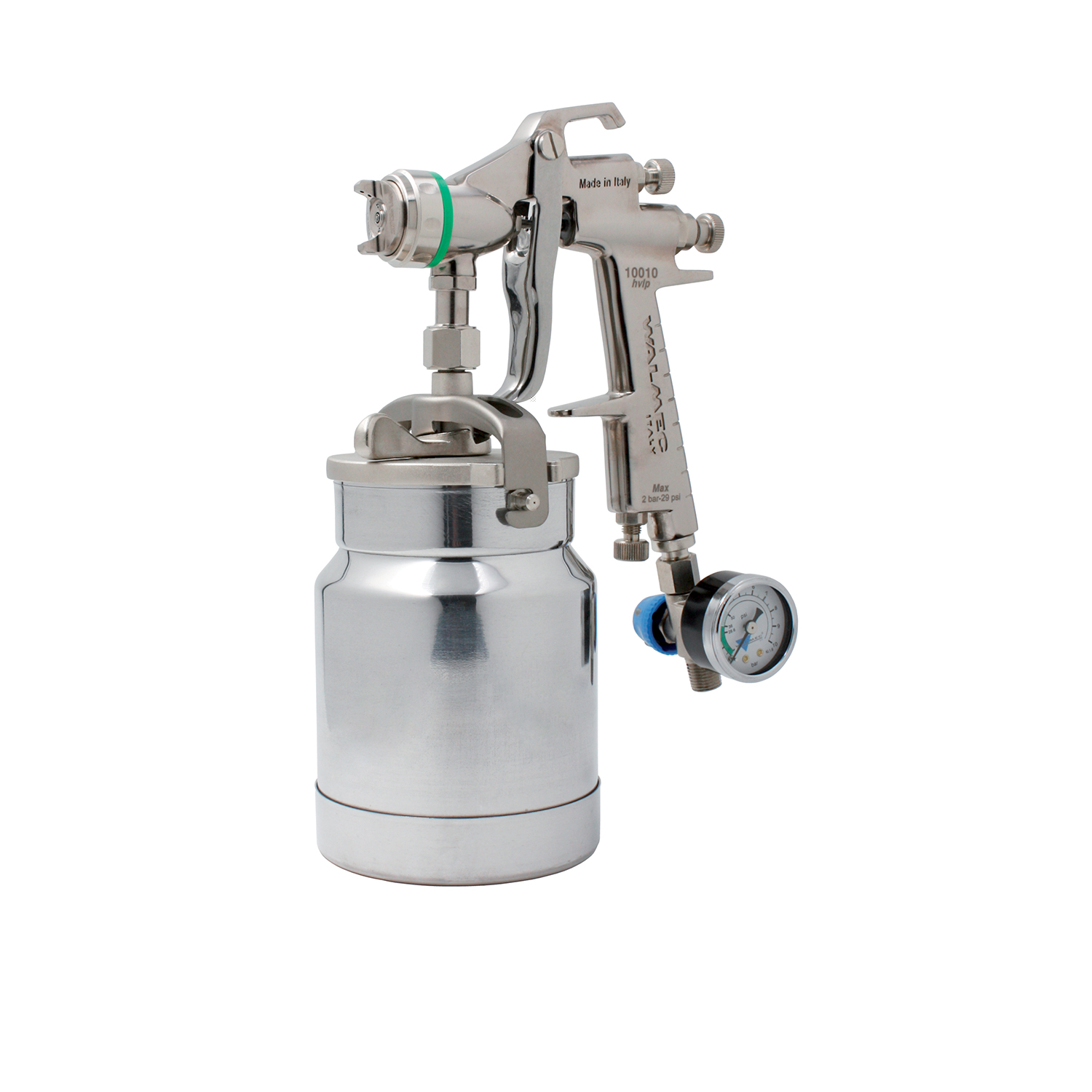

10010 HVLP - Camlock suction cup
Ref.
485**
Cup
Aluminium camlock suction cup 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
1.15 Kg
Operating air pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

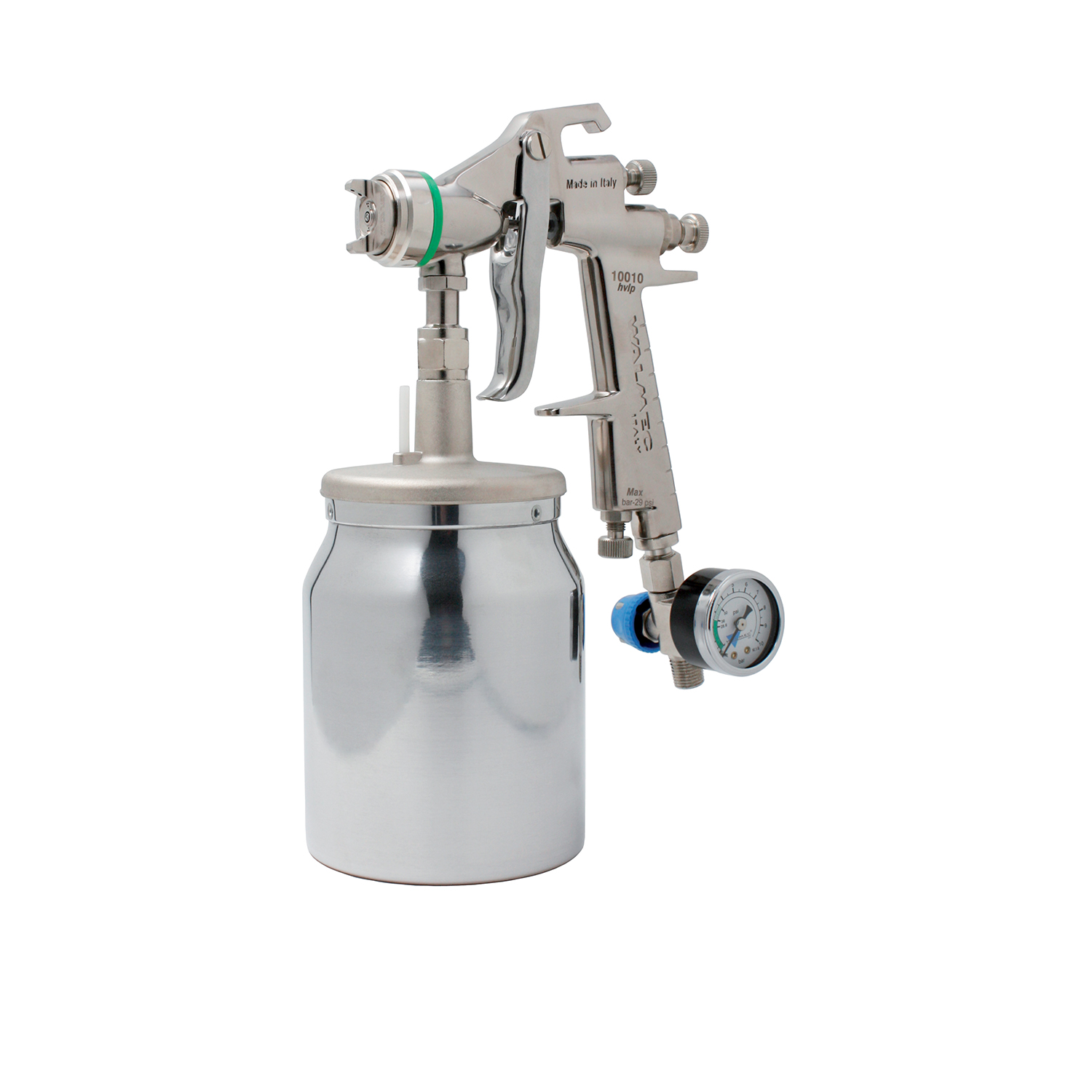

10010 HVLP - Bayonet suction cup
Ref.
486**
Cup
Aluminium bayonet suction cup 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
1.13 Kg
Operating air pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

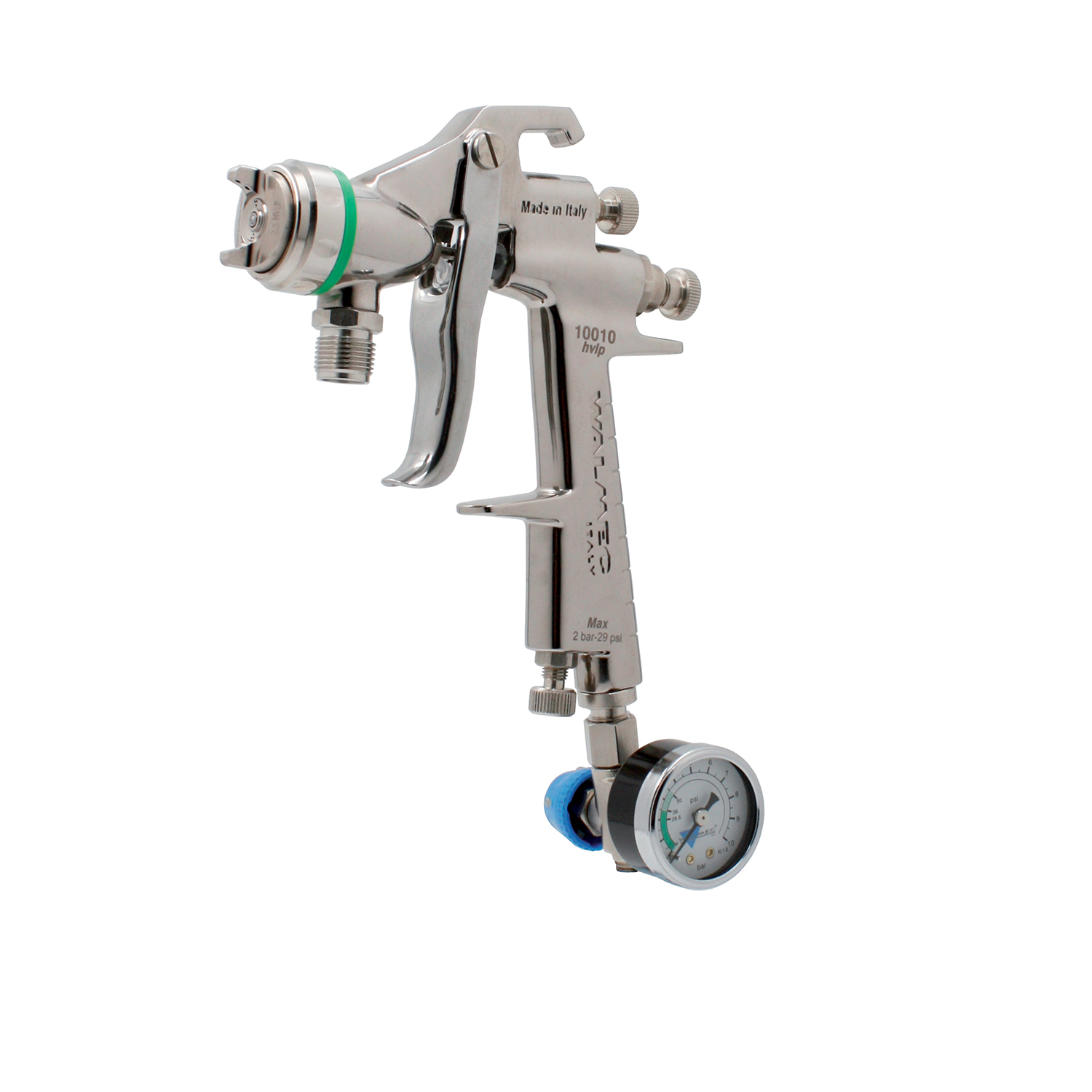

10010/SP HVLP
Ref.
487**
Pressurized containers
Low pressure pumps product inlet M1/4”
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
750 g
Operating air pressure
2.0 bar
Air consumption
230 l/min
Nozzle diameters
1.0 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Air inlet pressure regulator with pressure gauge
Add nozzle diameters to Ref. (**)

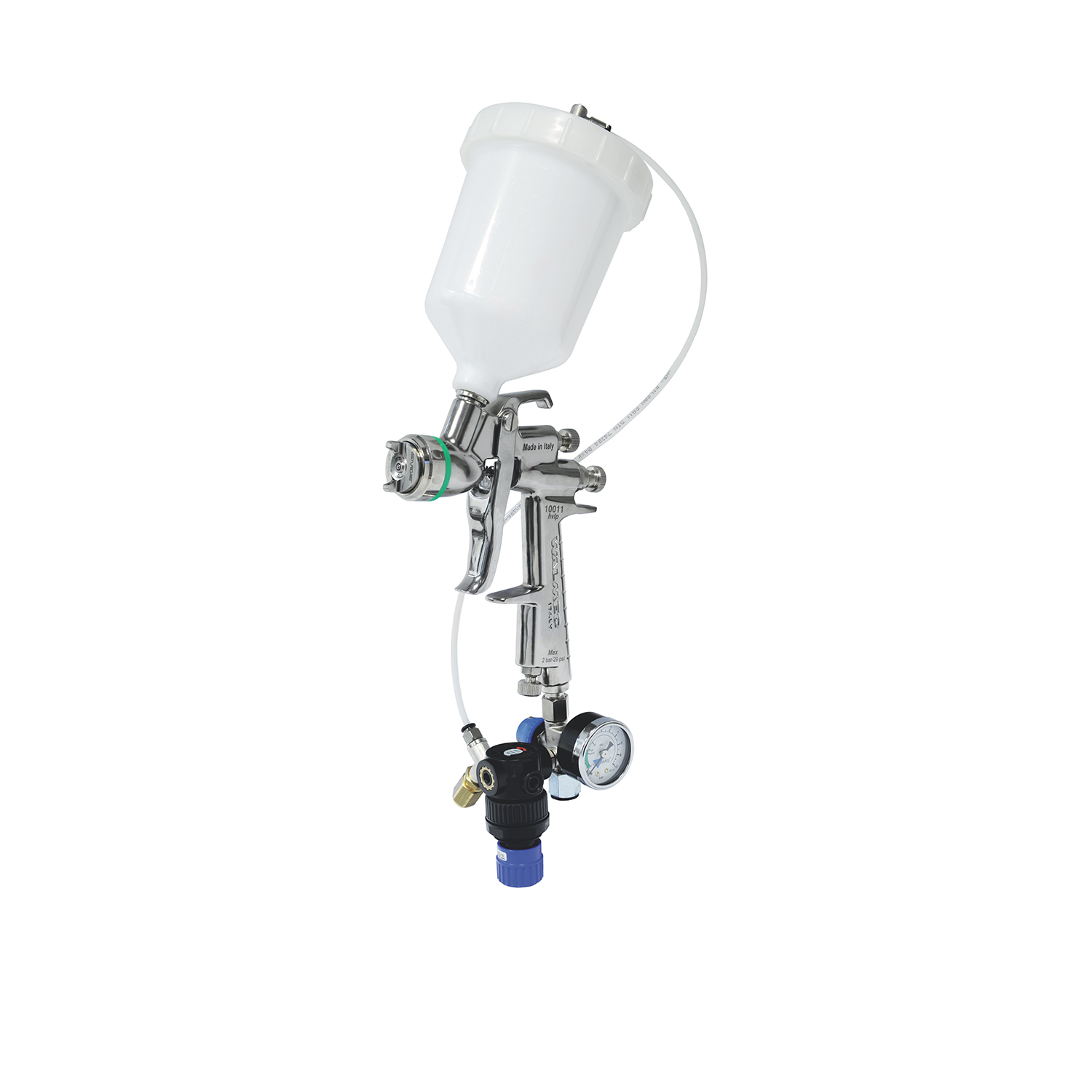

10011 HVLP HD
Ref.
498**
Pressurised gravity cup
Product inlet M 1/4”
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
1.25 Kg
Operating air pressure
2.0-2.5 bar
Air consumption
200 - 240 l/min
Nozzle diameters
1.3 - 1.5 - 1.7 - 1.9 - 2.2
Regulator
Double spray gun air inlet pressure regulator and pressurised cup with pressure gauge
Add nozzle diameters to Ref. (**)

Compatible regulators

Compatible cups

packaging

All spray guns of the Diecimila series are supplied in handy rigid plastic suitacases containing all the accessories for a correct cleaning and maintenance.
