Genesi Carbonio 360 HTE Base

Ideal for solvent and waterborne materials

HTE by Walcom, more than 20 years of experience with the most popular technology in the marker, the paint system that combines adequate atomizing pressure and high transferred efficiency, certified by international independent laboratory and research institutes. The specific base air cap HP - High paint layout with proper distribution and flow orientation, 12 holes nozzle, precise and wide range of adjustment for fan and paint flow, are details that makes it a unique piece of equipment in the refinish application of the latest generation products.

discover all the Genesi Carbonio 360 HTE Base serie

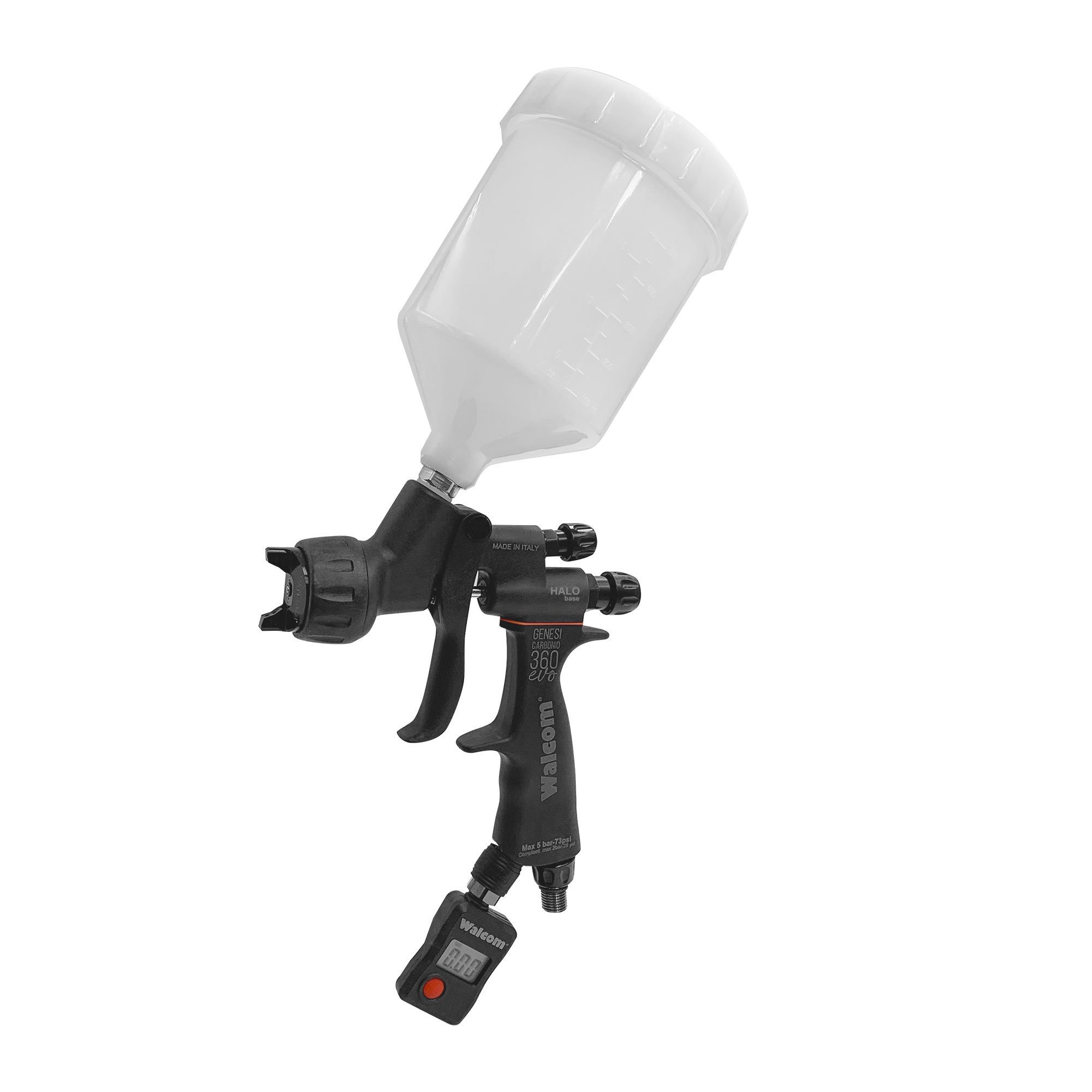

Genesi Carbonio 360 HTE Base - POM C 680 cc with regulator
Ref.
9730**
Cup
POM C 680 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
350 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
Regulator

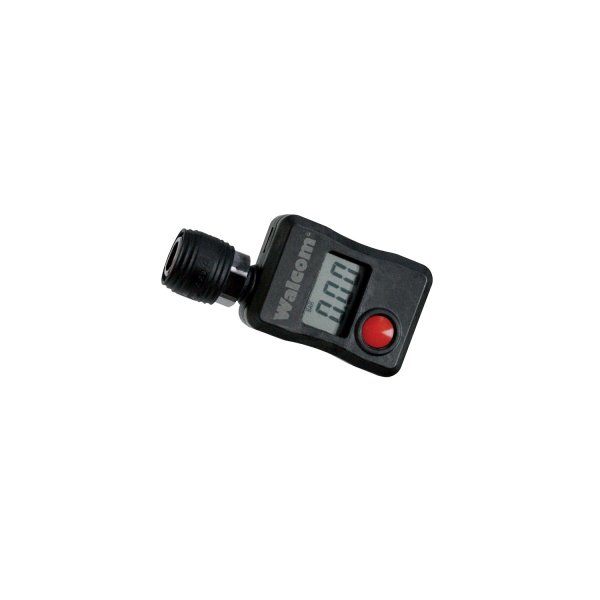

Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
Add noozle diameter to Ref. (**)

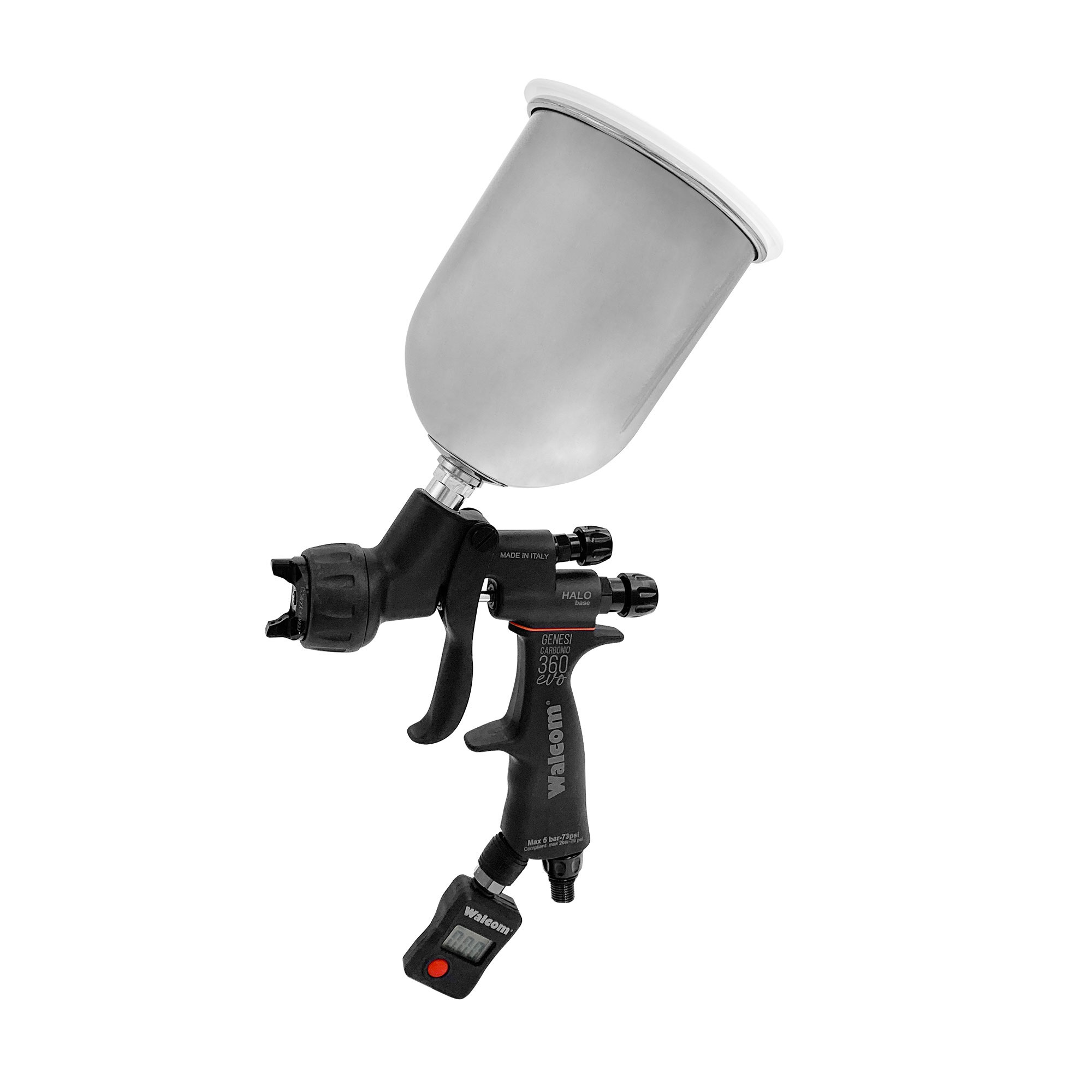

Genesi Carbonio 360 HTE Base - Aluminum 750 cc with regulator
Ref.
9735**
Cup
Aluminium 750 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
350 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
Regulator
Digital pressure gauge and air control regulator with quick connection sytem, made of carbon fiber. 30° articulated fiing.
Add noozle diameter to Ref. (**)
Genesi Carbonio 360 HTE Base - POM C 680 cc
Ref.
9720**
Cup
POM C 680 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
350 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
Add noozle diameter to Ref. (**)
Genesi Carbonio 360 HTE Base - Aluminum 750 cc
Ref.
9725**
Cup
Aluminium 750 cc
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
350 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
Add noozle diameter to Ref. (**)

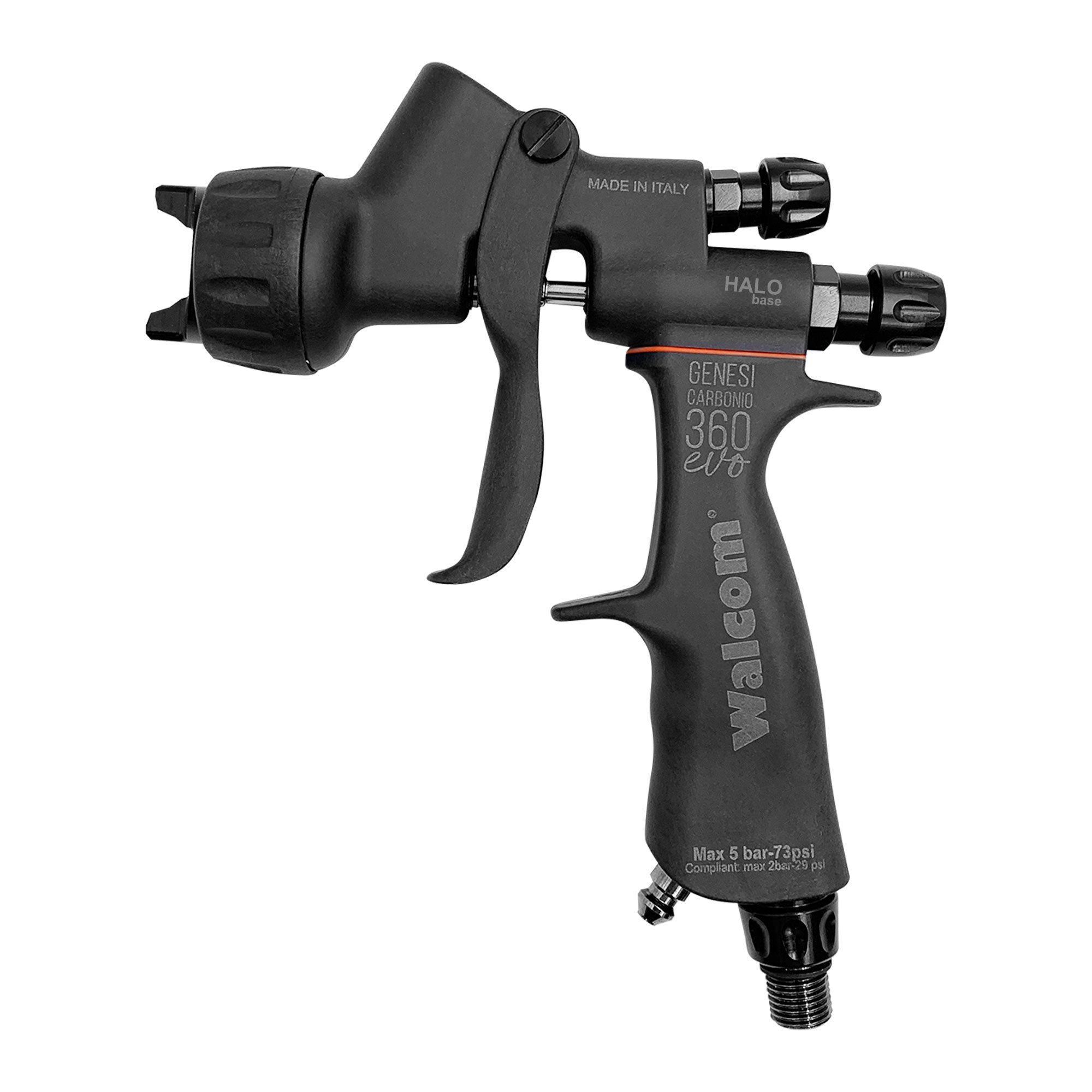

Genesi Carbonio 360 HTE Base
Ref.
9760**
Body
Forged aluminum and carbon fiber
Handle/Trigger
Carbon fiber
Aircap HP
Chemically nickeled plated brass
Air cap ring
Carbon fiber
Needle/Spring/Noozle
Stainless stell AISI 303
Seals
PTFE (teflon) self and adjsuting and manual regulation
Weight
360 g
Operating air pressure
2.0 bar
Air consumption
350 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.4 - 1.7 - 1.9
Add noozle diameter to Ref. (**)

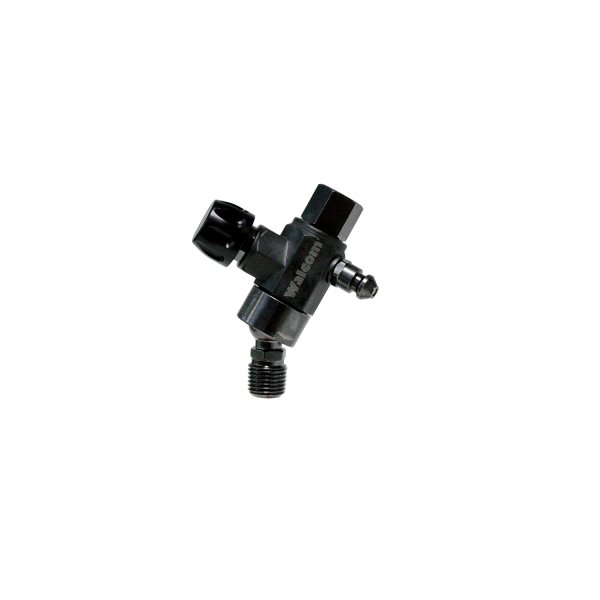

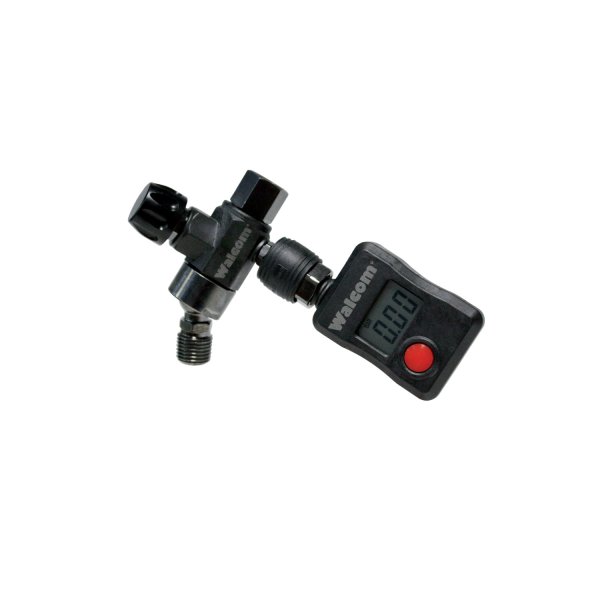

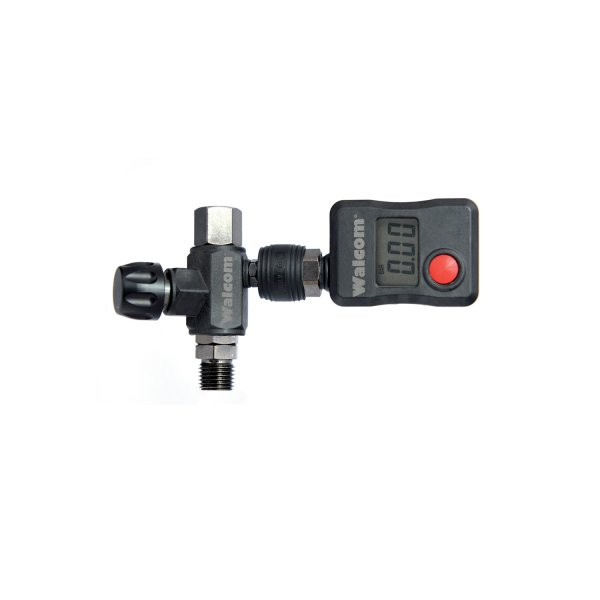

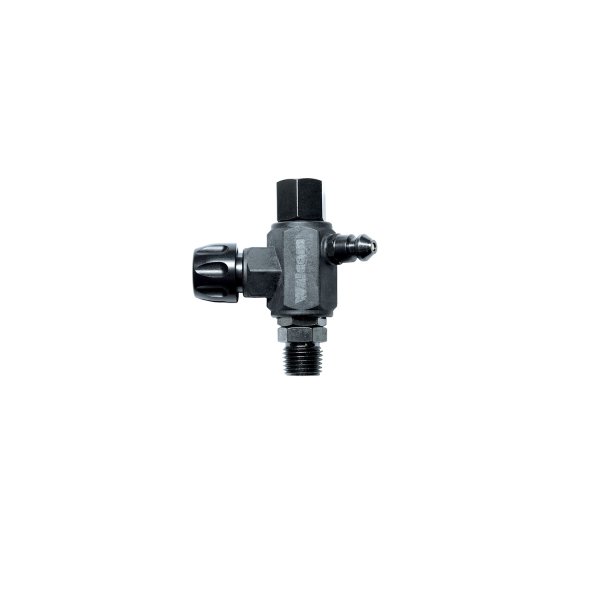

Compatible regulators

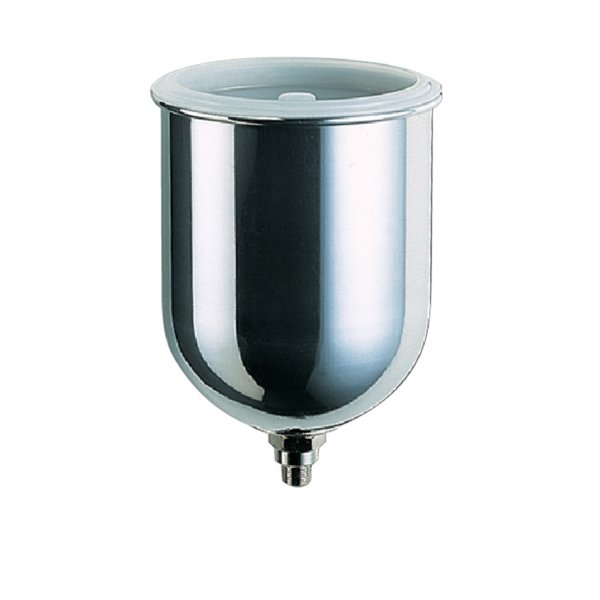

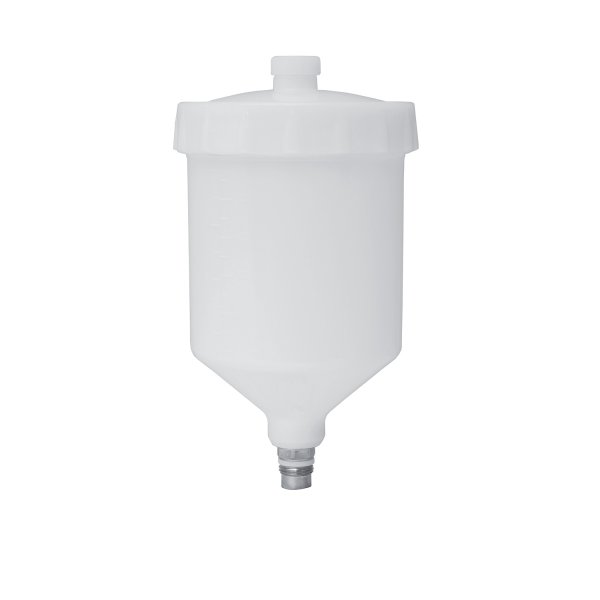

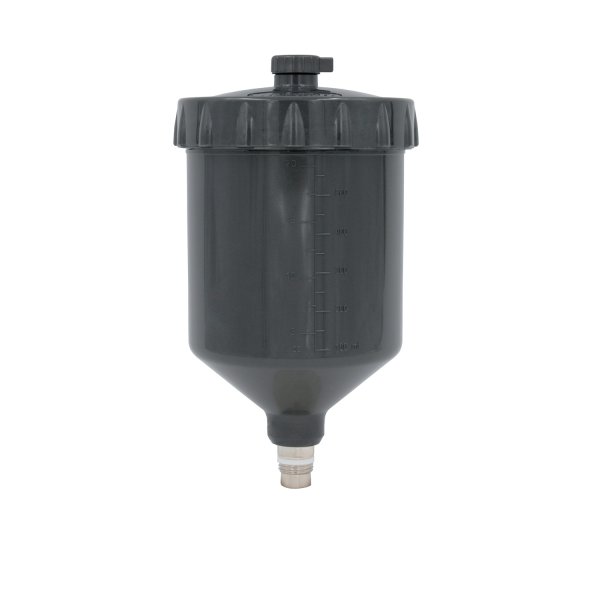

Compatible cups

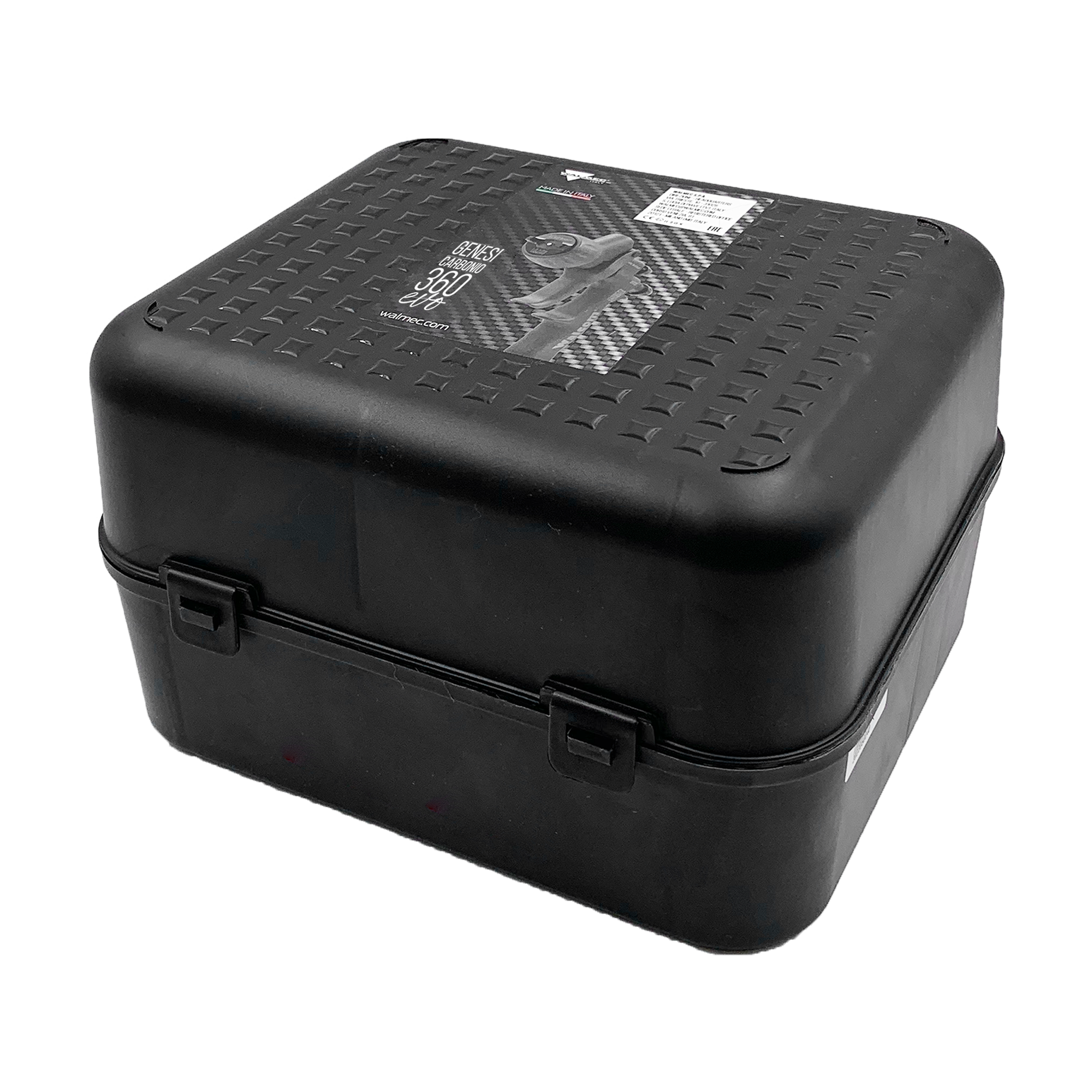

packaging

Two types of package: 1) BOX. Cardboard box package includes: sprayguns, rebuild kit (spring, seals, air valve) wrench tool, mineral lube oil, instruction manual and warranty. 2) SUITCASE. Rigid plastic suitcase includes: spraygun, air control with gauge ( for item id 9730** and 9735**), rebuild kit (spring, seals, air valve), cup, wrench tool, mineral lube oil, instruction manual and warranty.

packaging
