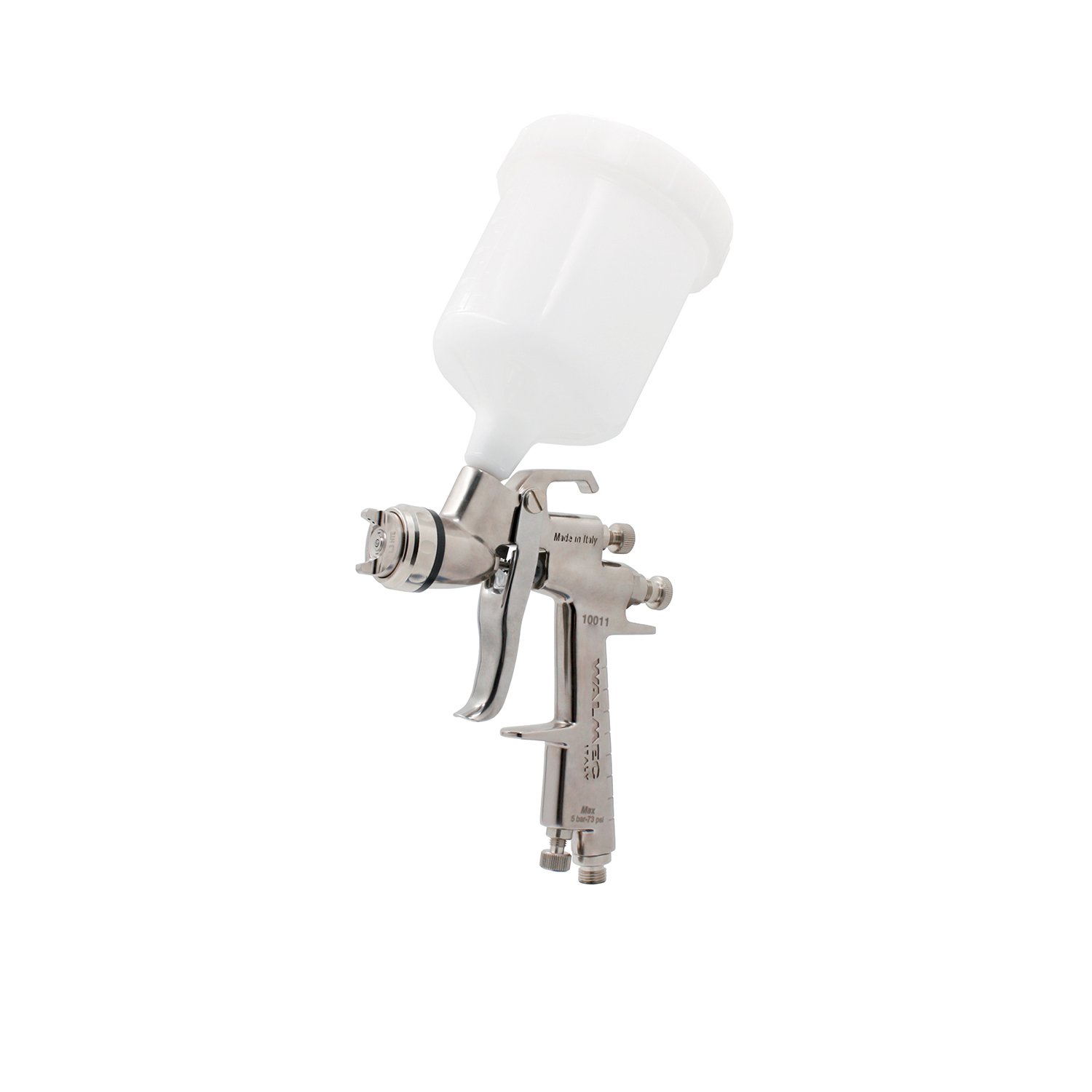

Serie Diecimila HTE SR

New and performing line of spray guns, replacing the famous 9000 models, its predecessor was one of the greatest in the industry. Developed following a new concept, air valve and needle on a single axis for more precision, functionality and easy maintenance. The spray gun body is nickeled plated aluminum, lighter for better handling; the air cap is nickeled plated brass to guarantee high performance in atomizing and ideal fan. HTE SR the same HTE features but withou the air gage regulator.

discover all the Serie Diecimila HTE SR serie

10011 HTE SR - Nylon 680 cc
Ref.
490**
Tank
Nylon 680 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
785 g
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add nozzle diameters to Ref. (**)

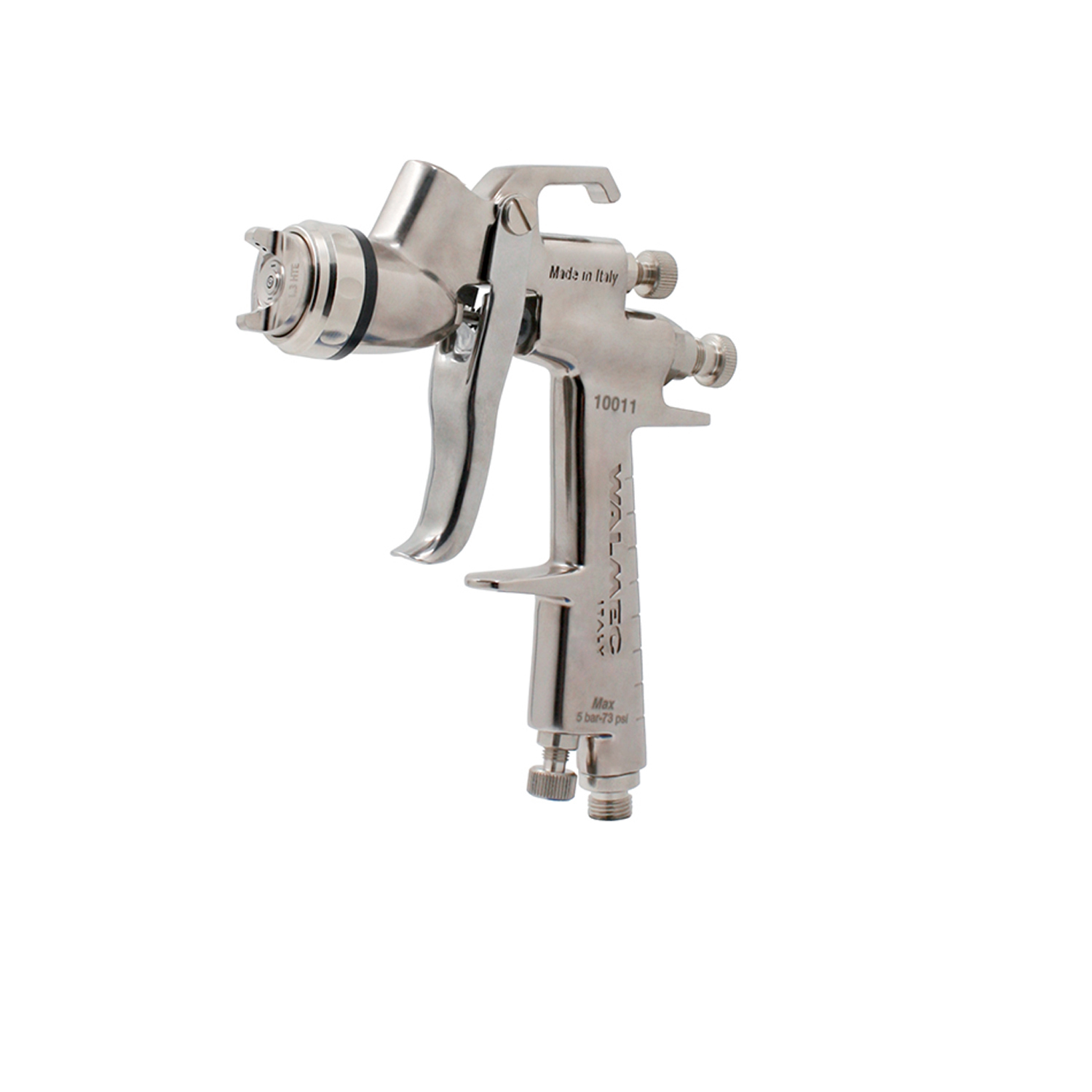

10011 HTE SR - Alu 500 cc
Ref.
491**
Tank
Aluminium 500 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
670 g
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add nozzle diameters to Ref. (**)
10011 HTE SR - Alu 750 cc
Ref.
492**
Tank
Aluminium 750 cc
Body
Chemical nicked-plated polished aluminium
Cap
chemical nicked-plated brass
Needle-spring-nozzle
Steinless steel
Weight
720 g
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add nozzle diameters to Ref. (**)

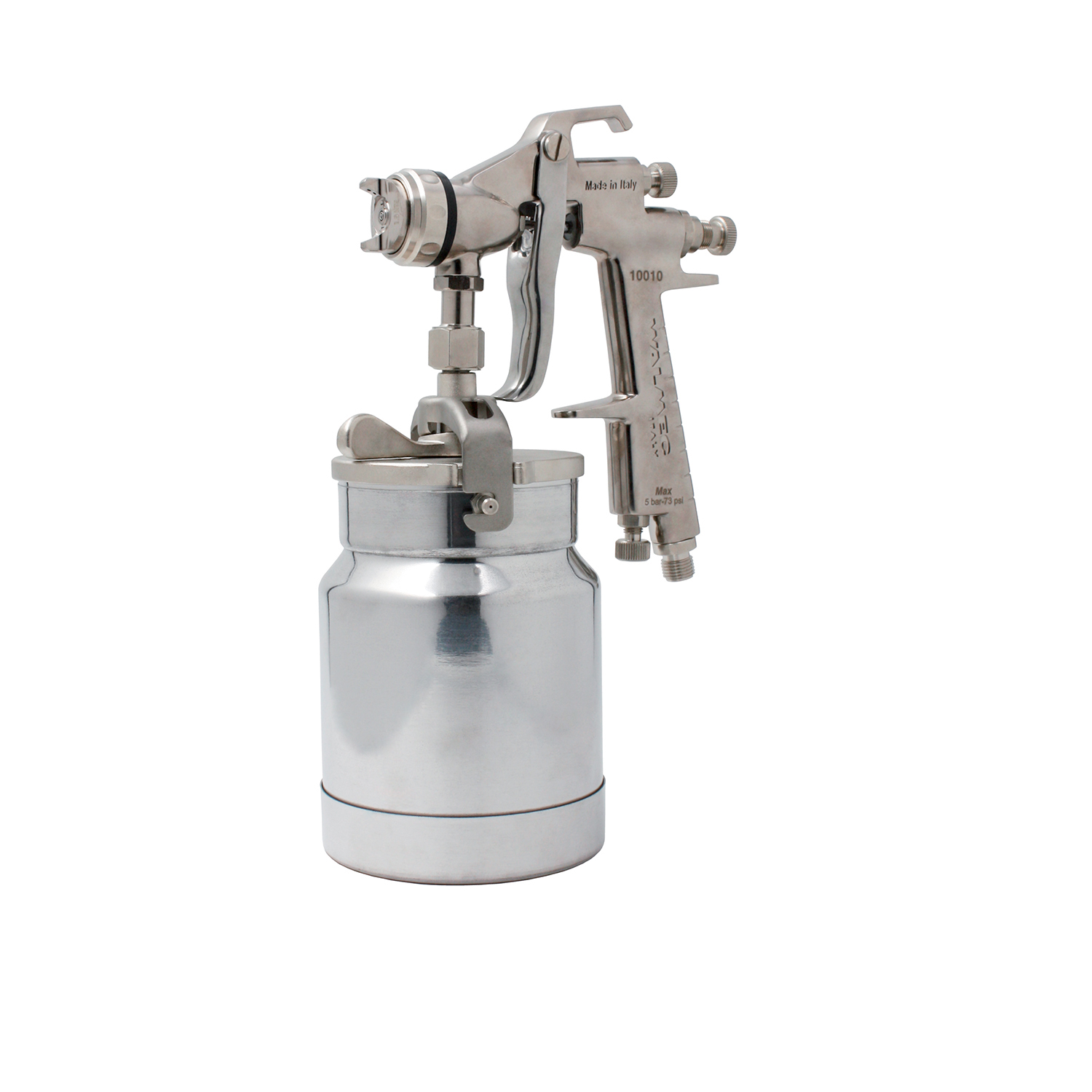

10010 HTE SR - Camlock suction cup
Ref.
495**
Cup
Aluminium camlock suction cup 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
980 Kg
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add nozzle diameters to Ref. (**)

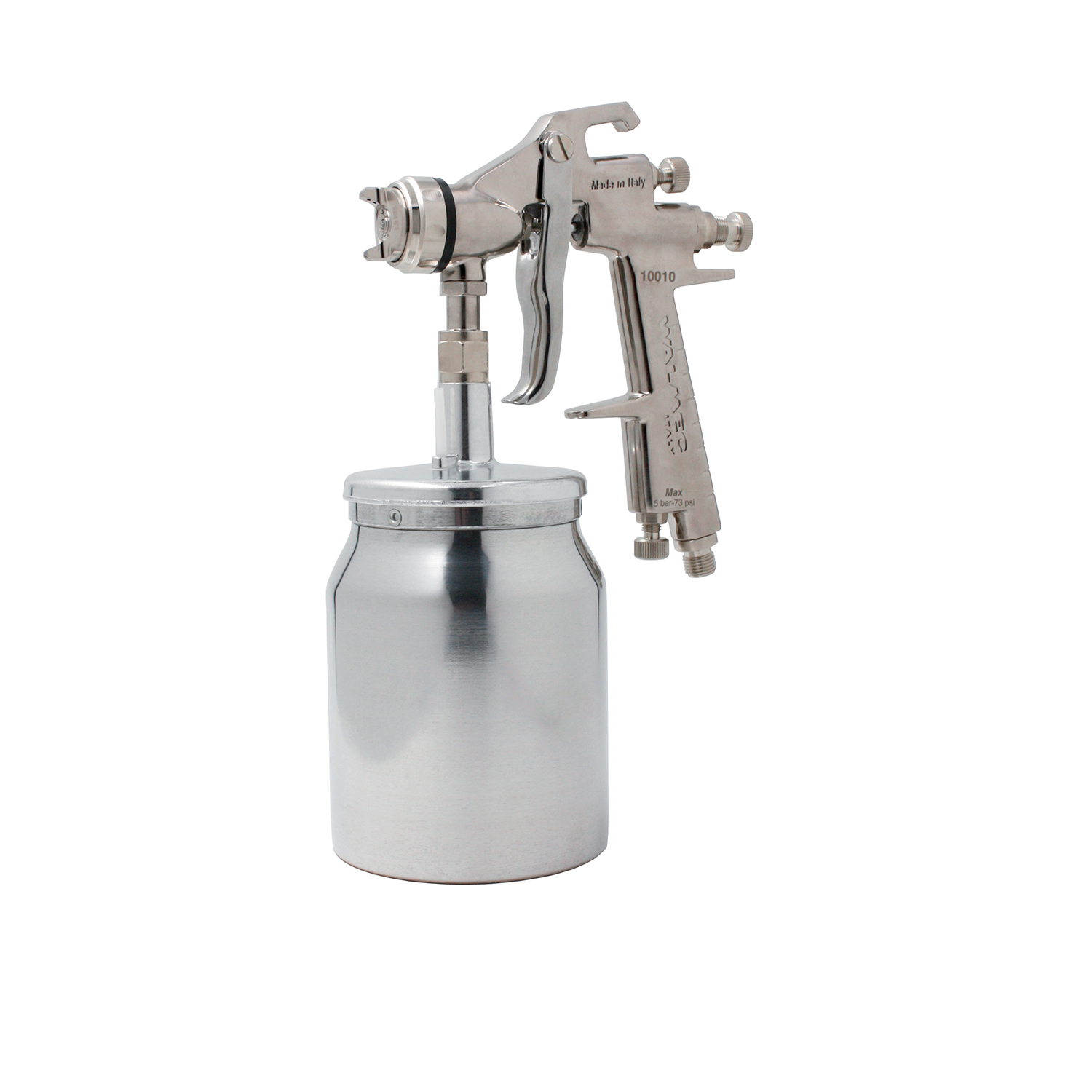

10010 HTE SR - Bayonet suction cup
Ref.
496**
Cup
Aluminium bayonet suction cup 1000 cc
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
970 g
Operating air pressure
2.0 - 2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2 - 2.5
Add nozzle diameters to Ref. (**)

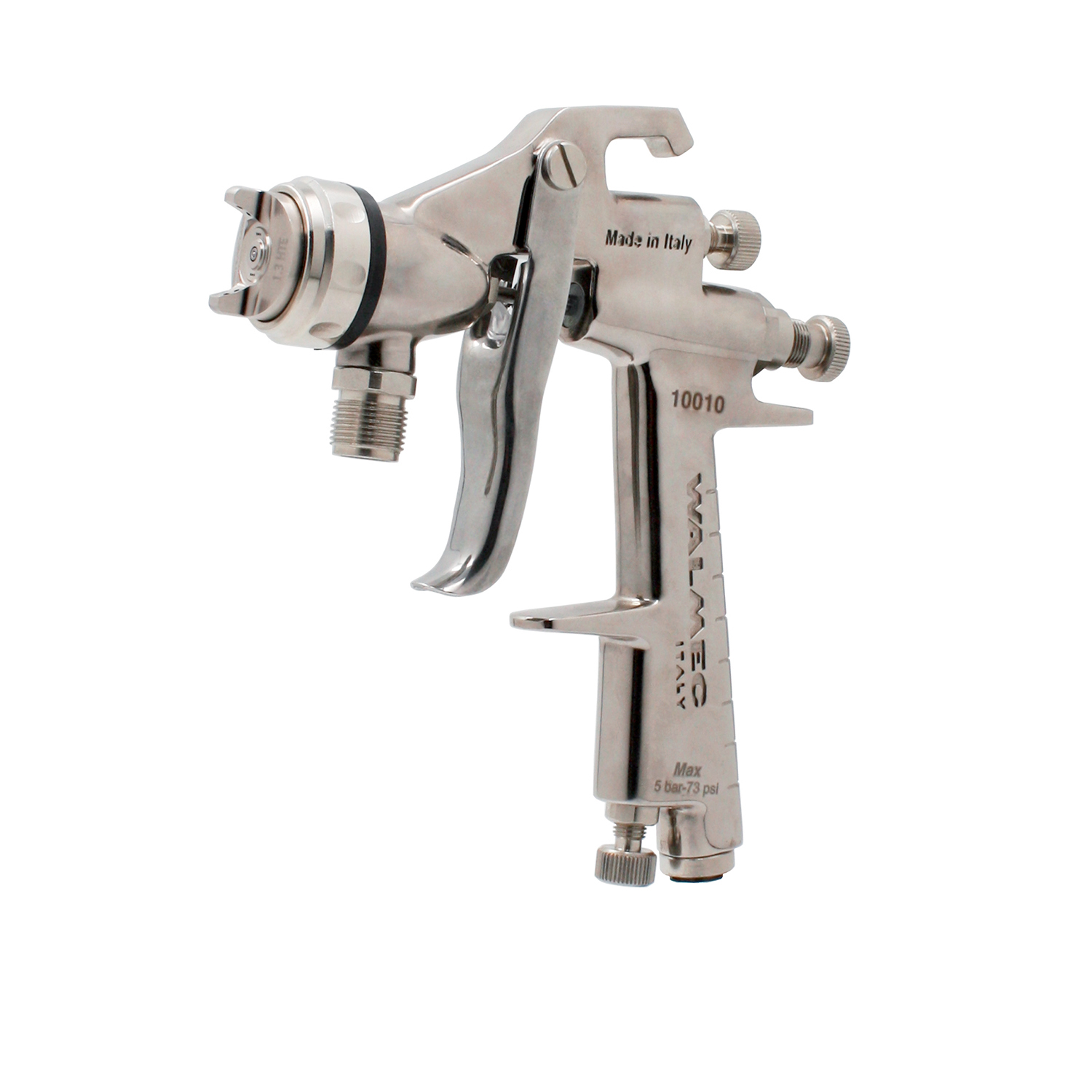

10010/SP HTE SR
Ref.
497**
Pressurized containers
Low pressure pumps product inlet M1/4”
Body
Chemical nickel-plated polished aluminium
Cap
Chemical nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Weight
600 g
Operating air pressure
2.0-2.5 bar
Air consumption
220 - 260 l/min
Nozzle diameters
1.0 - 1.2 - 1.3 - 1.5 - 1.7 - 1.9 - 2.2
Add nozzle diameters to Ref. (**)

Compatible regulators

Compatible cups

packaging

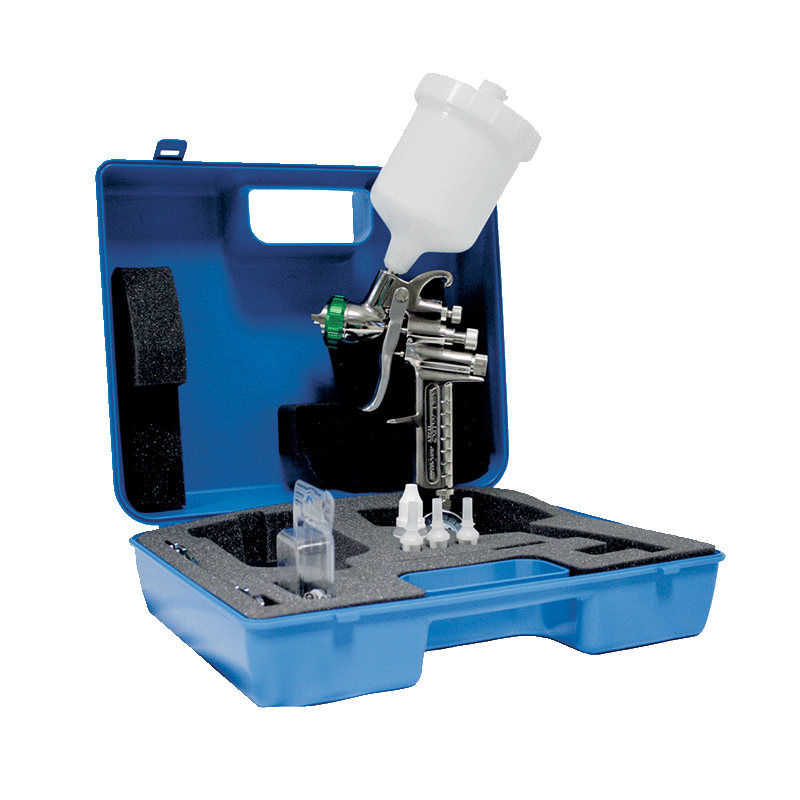

All spray guns of the Diecimila series are supplied in handy rigid plastic suitacases containing all the accessories for a correct cleaning and maintenance.
