Automatic spray guns

Ideal for waterborne and solvent base, MS and HS industrial, woodworking and body shop

Innovative automatic spray gun for industrial painting. With a new design, MATIK combines the high product atomization features with the needs typical of the automatic painting sector such as component durability and extreme maintenance ease. In fact, MATIK combines highly atomizing caps, from the bodywork sector, with perfect needle interference on the nozzle which, with CNC machine processed body and components, guarantee efficiency, reliability and durability.

discover all the Automatic spray guns serie

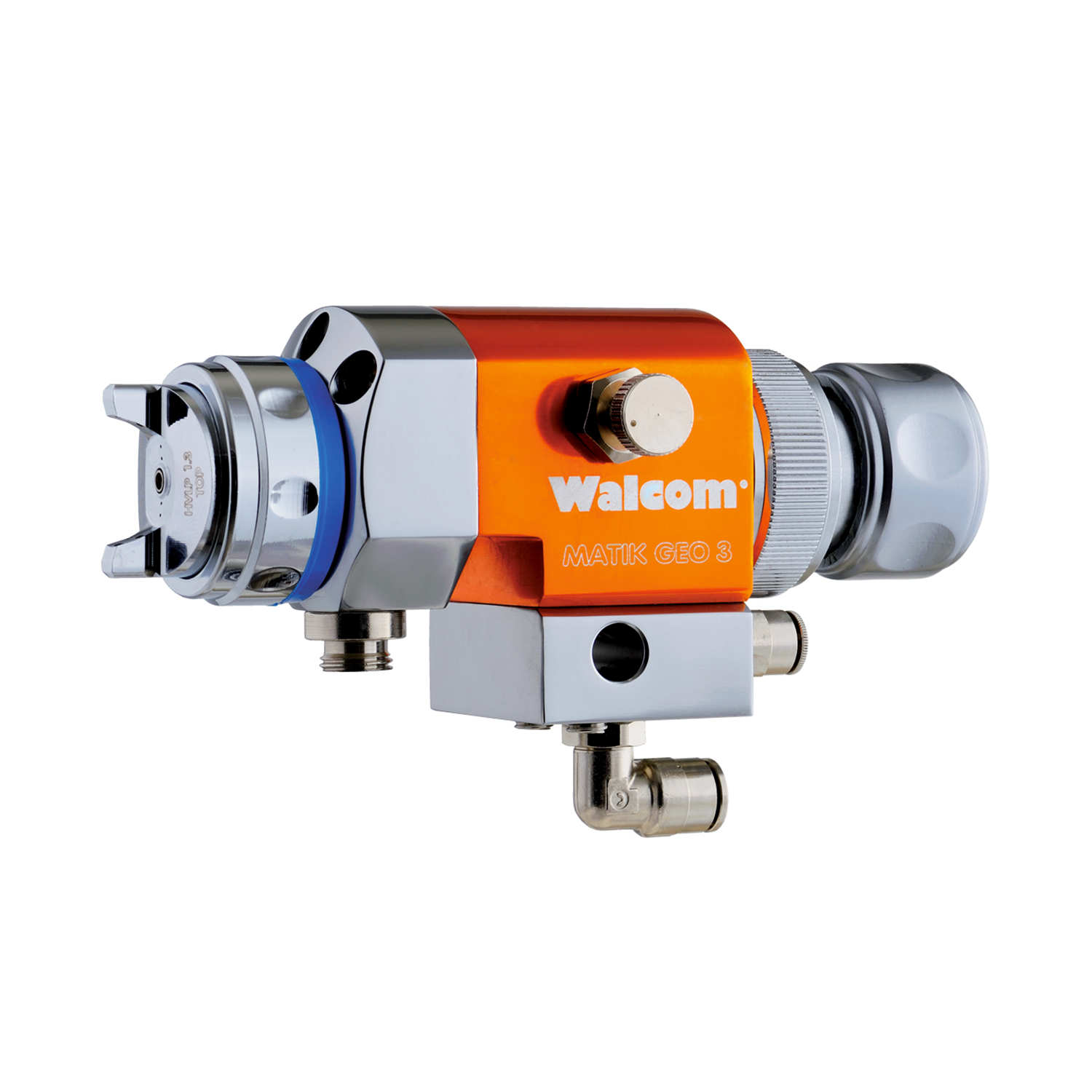

Matik GEO 3
Ref.
3260**
Air and control inlets
With rotary quick couplings (M 1/4" double product inlet)
Body
Extruded anodised aluminium
Cap
Nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Needle closing
Spring return
Seal gaskets
Self-lubricating PTFE (Teflon)
Fan and needle opening adjustments
Micrometric and independent
Weight
890 g
Working pressure
2.0 bar
Air consumption
250 l/min
Nozzle diameters
0.7 - 1.0 - 1.3 - 1.5 - 1.7
Add noozle diameter to Ref. (**)

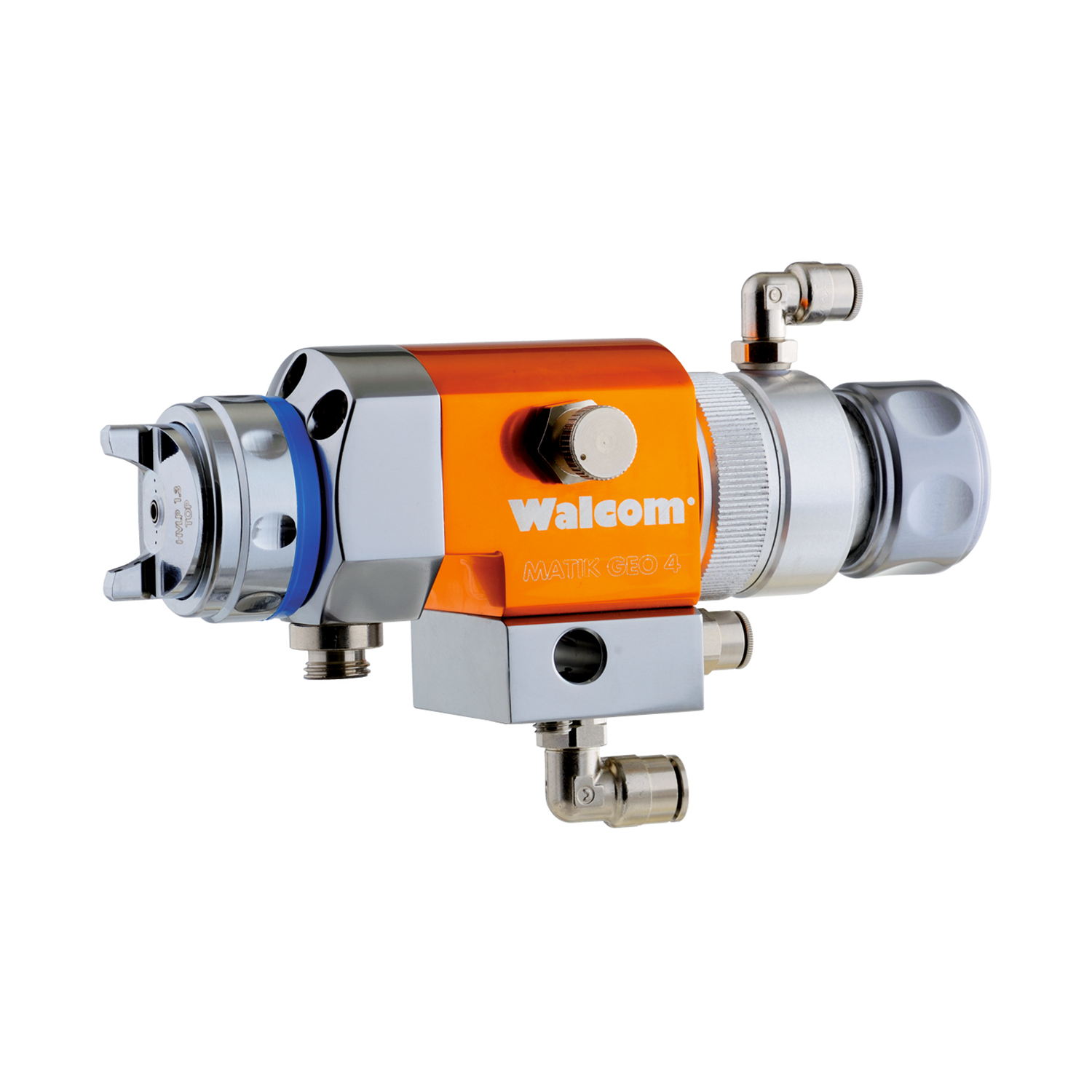

Matik GEO 4
Ref.
3265**
Air and control inlets
With rotary quick couplings (M 1/4" double product inlet)
Body
Extruded anodised aluminium
Cap
Nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Needle closing
Pneumatic return
Seal gaskets
Self-lubricating PTFE (Teflon)
Fan and needle opening adjustments
Micrometric and independent
Weight
983 g
Working pressure
2.0 bar
Air consumption
250 l/min
Nozzle diameters
0.7 - 1.0 - 1.3 - 1.5 - 1.7
Add noozle diameter to Ref. (**)

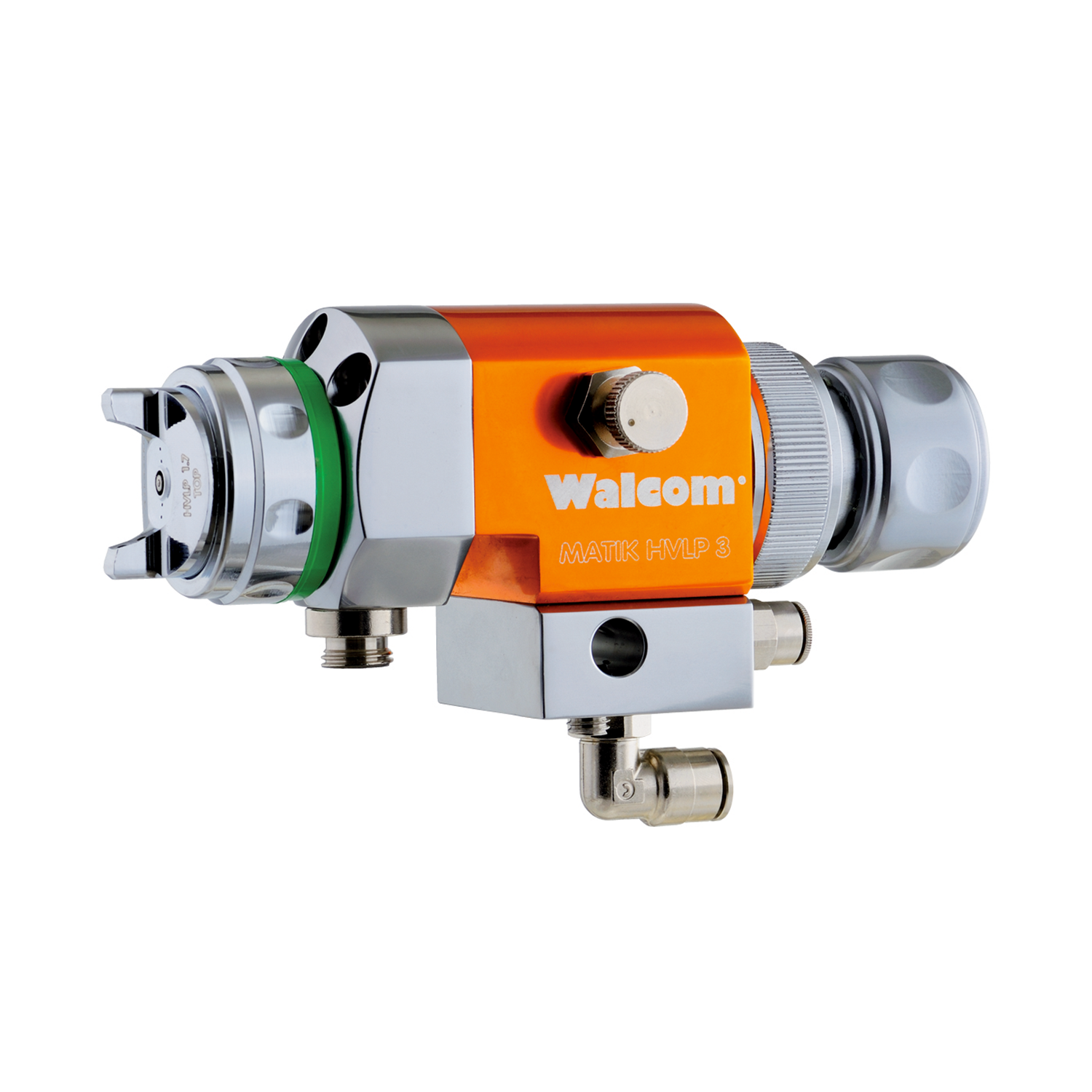

Matik HVLP 3
Ref.
3270**
Air and control inlets
With rotary quick couplings (M 1/4" double product inlet)
Body
Extruded anodised aluminium
Cap
Nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Needle closing
Spring return
Seal gaskets
Self-lubricating PTFE (Teflon)
Fan and needle opening adjustments
Micrometric and independent
Weight
890 g
Working pressure
2.0 bar
Air consumption
250 l/min
Nozzle diameters
0.8 - 1.0 - 1.2 - 1.4 - 1.7
Add noozle diameter to Ref. (**)

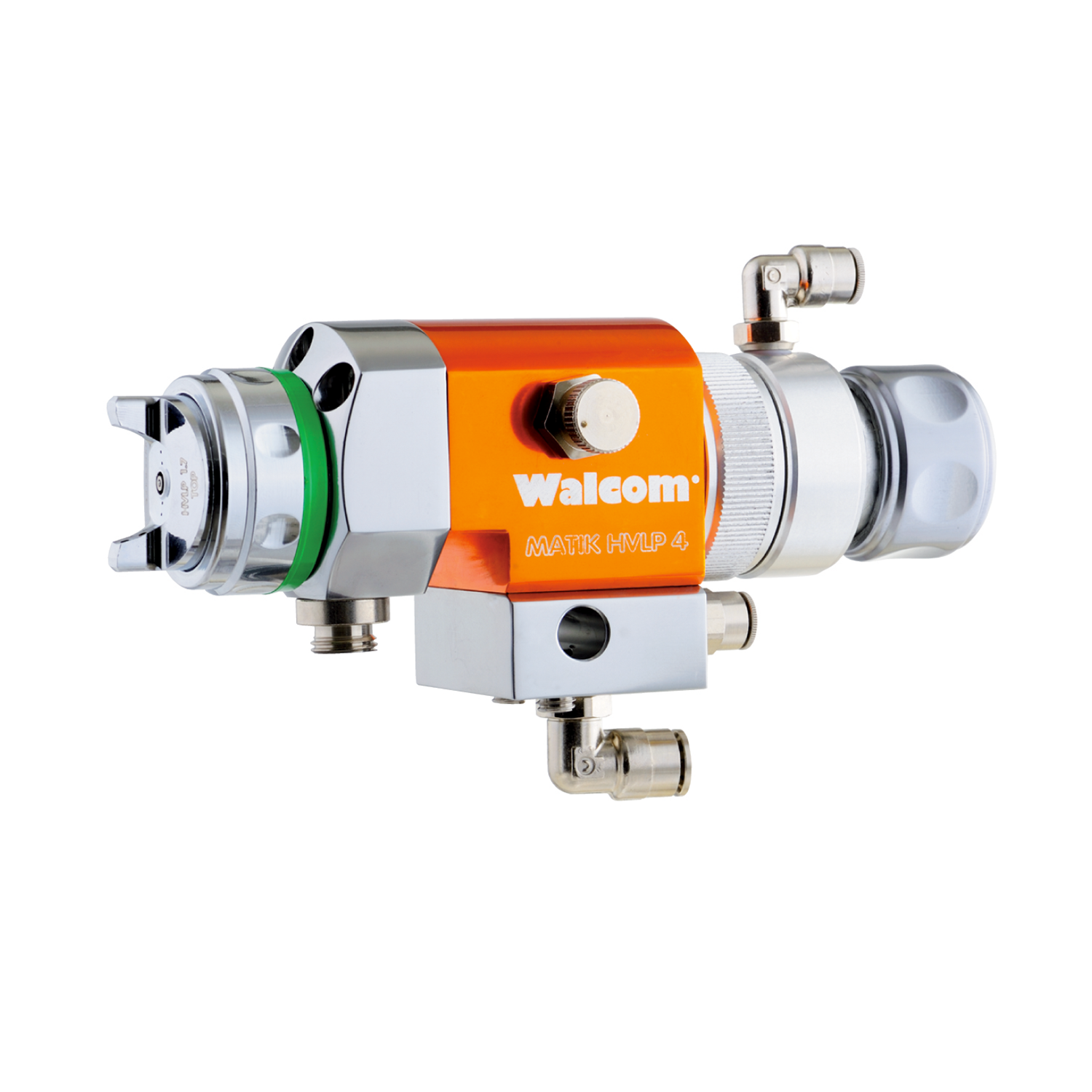

Matik HVLP 4
Ref.
3275**
Air and control inlets
With rotary quick couplings (M 1/4" double product inlet)
Body
Extruded anodised aluminium
Cap
Nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Needle closing
Spring return
Seal gaskets
Self-lubricating PTFE (Teflon)
Fan and needle opening adjustments
Micrometric and independent
Weight
983 g
Working pressure
2.0 bar
Air consumption
250 l/min
Nozzle diameters
0.8 - 1.0 - 1.2 - 1.4 - 1.7
Add noozle diameter to Ref. (**)

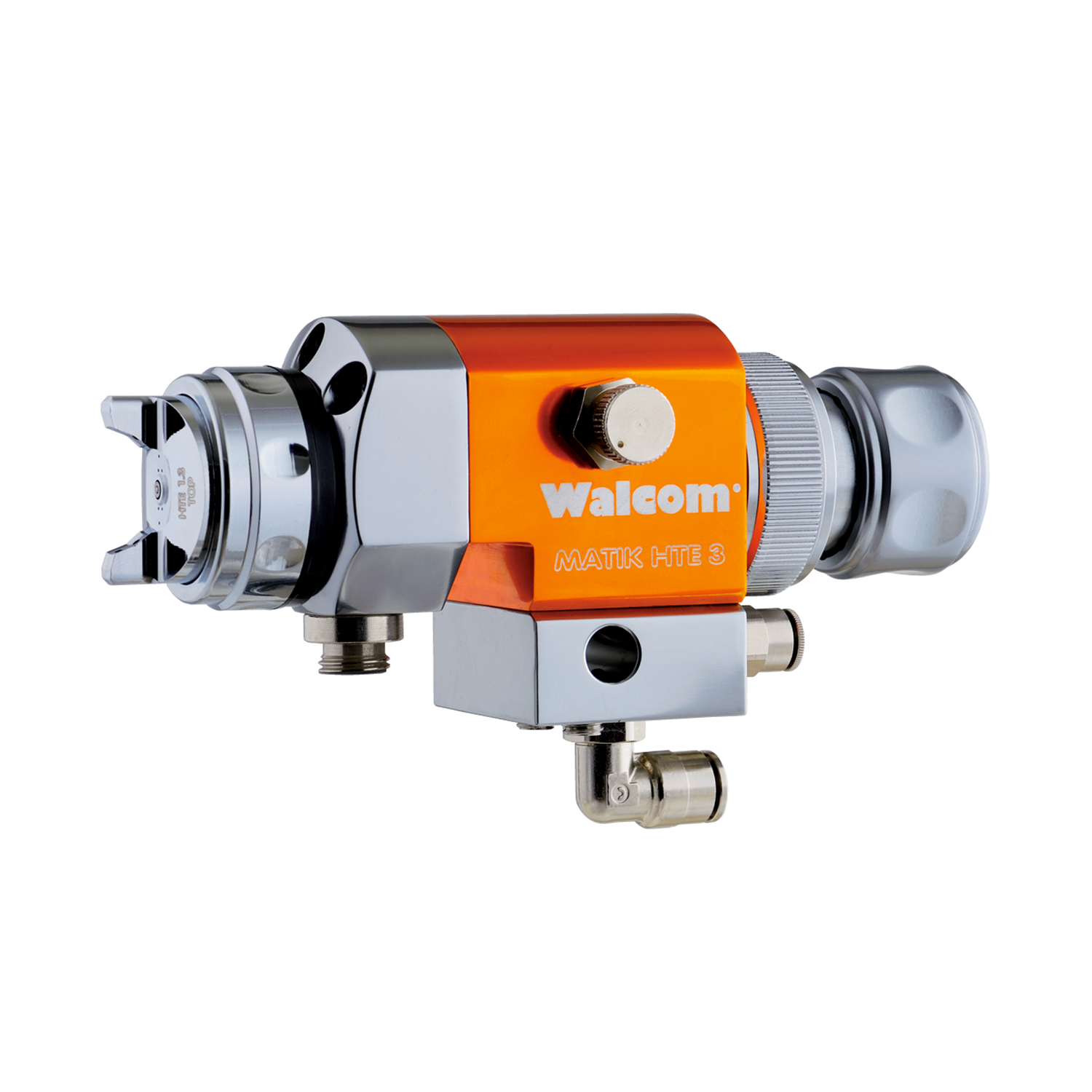

Matik HTE 3
Ref.
3280**
Air and control inlets
With rotary quick couplings (M 1/4" double product inlet)
Body
Extruded anodised aluminium
Cap
Nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Needle closing
Spring return
Seal gaskets
Self-lubricating PTFE (Teflon)
Fan and needle opening adjustments
Micrometric and independent
Weight
890 g
Working pressure
2.0 bar
Air consumption
250 l/min
Nozzle diameters
0.8 - 1.0 - 1.2 - 1.4 - 1.7
Add noozle diameter to Ref. (**)
Matik HTE 4
Ref.
3285**
Air and control inlets
With rotary quick couplings (M 1/4" double product inlet)
Body
Extruded anodised aluminium
Cap
Nickel-plated brass
Noozle
AISI 303 stainless steel
Needle-spring
Stainless steel
Needle closing
Pneumatic return
Seal gaskets
Self-lubricating PTFE (Teflon)
Fan and needle opening adjustments
Micrometric and independent
Weight
983 g
Working pressure
2.0 bar
Air consumption
250 l/min
Nozzle diameters
0.8 - 1.0 - 1.2 - 1.4 - 1.7
Add noozle diameter to Ref. (**)

packaging

The MATIK series are conveniently packed in structure cardboard box, high protection type. In the package is included: pneumatic fitting and couplers for the connection to the air system and the usual kit for cleaning and maitneinace.
